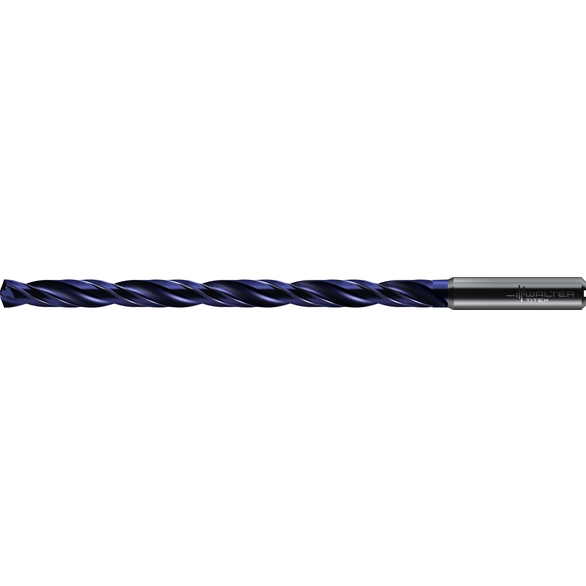

Walter USA 6618771 140 Degree, 0.1929 in, Solid carbide, Straight Flute & Die Drill Bit
TITEX 6618771
$207.36
/ EA
Out of Stock
- Applicable Material: Cast Aluminum Wrought, Copper and Copper Alloy, Spheroidal Graphite, Carbon and Glass Fiber Reinforced, GGV, Gray/Hardened Cast Iron and Steel, Heat Resistant Alloy, High and Low, Non Alloy Steel, Molybdenum Alloy, Stainless Steel and Titanium
- Drill Bit Diameter Tolerance: m7
- Flute Length x Diameter Ratio: 12XD
- Number of Flutes: 2
- Shank Diameter - Decimal: 0.236 in
- Drill Bit Size - Decimal: 0.1929 in
- Drill Bit Finish/Coating: TiNAl
- Overall Length: 4.764 in
- Through Coolant: Yes
- Cutting Depth: 2.913 in
- Cutting Direction: Right Hand
- Cutting Edge Material: Solid Carbide
- Flute Length: 3.268 in
- Material Grade: WJ30TA
- Maximum Drilling Depth: 2.913 in
- Part Number: 6618771
- Point Type: Spiral
- Shank Length: 1.417 in
- Shank Type: Straight-Cylindrical
- Flute Type: Spiral
Standard/Approvals:DC150-12-04.900A1-WJ30TA
Walter USA 6618771 | 140 Degree | 0.1929 in | Solid carbide | TiNAl | Straight Flute & Die Drill Bit
