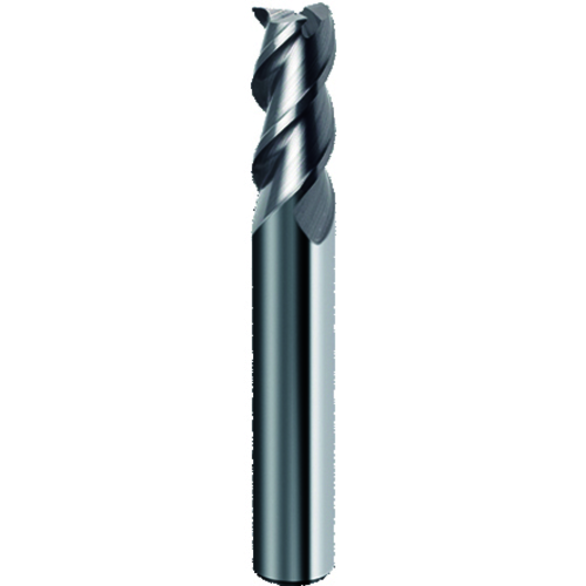

Guhring 9199580190500 3/4 in Milling Dia, 1-1/2 in LOC, 4 in OAL, 3 Flutes, Solid Carbide, Bright, Square End Mills
GUH 9199580190500
$168.41
/ EA
Out of Stock
- Mill Diameter: 0.75 in
- Mill Diameter - Decimal: 0.75 in
- Mill Diameter - Fractional: 3/4 in
- Number of Flutes: 3
- Material: Solid Carbide
- Length of Cut: 1.5 in
- Shank Diameter: 0.75 in
- Shank Diameter - Decimal: 0.75 in
- Shank Diameter - Fractional: 3/4 in
- Overall Length: 4 in
- Cutting Direction: Right Hand
- Helix Angle: 45 deg
- Centercutting: Centercutting
- Coolant Through: No
- Extended Reach: No
- Finish/Coating: Firex
- Flute Type: Helical
- Length of Cut - Fractional: 1-1/2 in
- Overall Length - Decimal: 4 in
- Single or Double End: Singel End
- Length Type: Standard
- Flute Direction: Right Hand
- Helical flutes, also known as variable flutes, have the highest flute angles and provide an aggressive cutting action for faster chip removal. The helix angle changes from the tip to the end of the cutting length
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
Guhring 9199580190500 Mill Diameter 3/4 in | Number of Flutes 3 | Length of Cut 1-1/2 in | Solid Carbide | Firex | Square End Mill
