MIC100 CRE-250-080 0.0800" Radius x 0.0600" Pilot DIA - DE - 3 FL
MIC100 CRE-250-080
$78.19
/ EA
Out of Stock
- Material: Carbide
- Corner Radius: 0.08 in
- Mill Diameter: 0.25 in
- Mill Diameter - Decimal: 0.25 in
- Mill Diameter - Fractional: 1/4 in
- Mill Diameter - Metric: 6.35 mm
- Single or Double End: Double End
- Number of Flutes: 3
- Finish/Coating: Uncoated
- Shank Diameter: 0.25 in
- Shank Diameter - Decimal: 0.25 in
- Shank Diameter - Fractional: 1/4 in
- Shank Diameter - Metric: 6.35 mm
- Overall Length: 2.5 in
- Cutting Direction: Right Hand
- Overall Length - Decimal: 2.5 in
- Overall Length - Fractional: 2-1/2 in
- Part Number: CRE-250-080
- Radius: 5/64 in
- Series/List: CRE
- Tip Diameter: 0.06 in
- Tip Diameter - Decimal: 0.06 in
- Tip Diameter - Metric: 1.524 mm
- Flute Direction: Right Hand

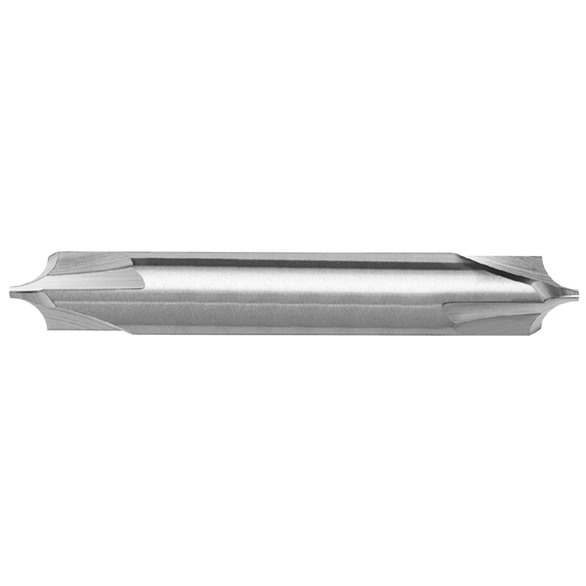

- Double-end corner-rounding end mills with a straight shank have concave cutting edges on both their ends for creating rounded outside edges on a workpiece
- They can accomplish more milling tasks than single-end corner-rounding end mills before they need to be replaced
- When the cutting edges on one end wear down, the end mill can be flipped over to expose the fresh cutting edges on the other end
- End mills with a straight shank install into a chuck, collet, or heat-shrink toolholder on a milling machine
Micro 100 CRE-250-080 Carbide | Double End | 5/64 in | 3/64 in | 3 | Corner Rounding End Mill
