Walter Tools

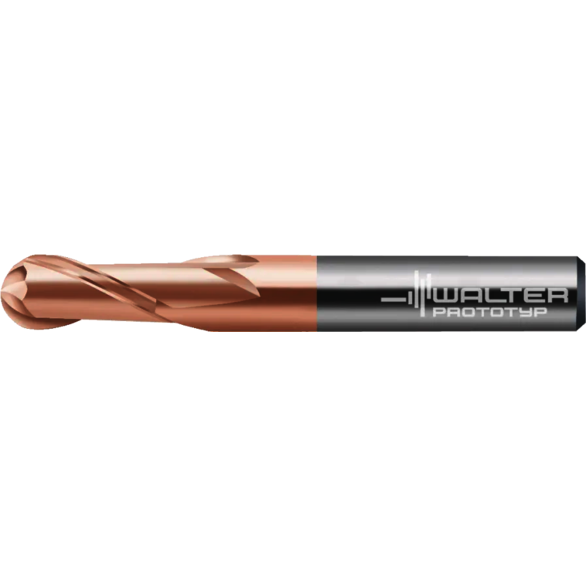

MILLING CUTTERS MC482-03.0A2B-WB10TG
PROTYP 7255193
$114.37
/ EA
Out of Stock
- Mill Diameter: 3 mm
- Mill Diameter - Decimal: 0.1181 in
- Mill Diameter - Metric: 3 mm
- Number of Flutes: 2
- Length of Cut: 2.4 mm
- Material: Carbide
- Overall Length: 57 mm
- Shank Diameter: 6 mm
- Shank Diameter - Decimal: 0.2362 in
- Shank Diameter - Metric: 6 mm
- Finish/Coating: TiAlSiN
- Single or Double End: Single End
- Helix Angle: 30 deg
- Centercutting: Center Cutting
- Coating: TiAlSiN
- Coolant Through: No
- Cutting Diameter: 3 mm
- Cutting Diameter - Metric: 3 mm
- Cutting Direction: Right Hand
- Extended Reach: Yes
- Functional Length: 57 mm
- Functional Length - Metric: 57 mm
- Head Length: 21 mm
- Head Length - Metric: 21 mm
- Length of Cut - Decimal: 0.094 in
- Length of Cut - Metric: 2.4 mm
- Maximum Depth of Cut: 2.4 mm
- Maximum Depth of Cut - Metric: 2.4 mm
- Overall Length - Metric: 57 mm
- Protruding Length: 21 mm
- Protruding Length - Metric: 21 mm
- Shank Length: 36 mm
- Shank Length - Metric: 36 mm
- Standard: DIN 6527 K
- Weight: 0.024 kg
- Flute Direction: Right Hand
MILLING CUTTERS MC482-03.0A2B-WB10TG
