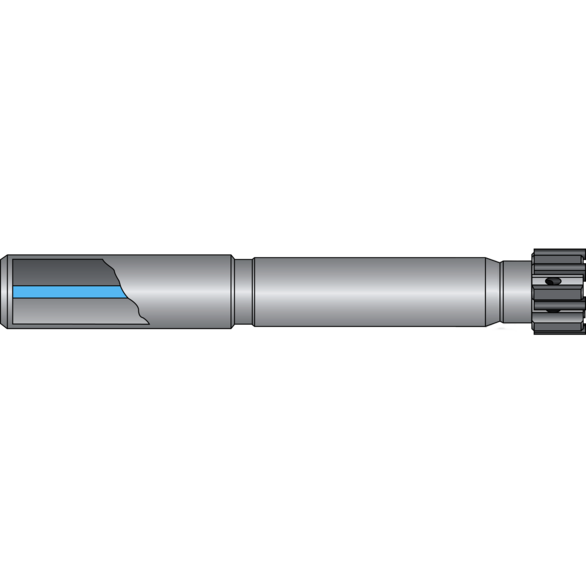

ALLIED LNG ARBOR 075 SERIES 32MM SHK Modular Reamer Body
ALLIED 7001-MC-075
$912.10
/ EA
Out of Stock
- Series: 6510, 7001
- Shank Type: Cylindrical, Straight
- Coolant Through: Radial Coolant, Yes
- Cutting Direction: Right Hand
- Cutting Edge Material: Carbide
- Finish: EgiAs Coated
- Flute Length - Metric: 44 mm
- Flute Type: Spiral
- Length Type: Short
- Maximum Diameter: 1.9924 in
- Maximum Diameter - Metric: 50.6 mm
- Minimum Diameter: 1.8171 in
- Minimum Diameter - Metric: 45.61 mm
- Number of Flutes: 2
- Overall Length - Metric: 95 mm
- Point Angle: 140
- Point Type: R-Thinning
- Shank Diameter - Metric: 32 mm
- Shank Size: 6 mm Dia x 51 mm L
- Material: Carbide
ALVAN® Replaceable Head Mandrel:
- The replaceable head model allows for on-machine replacement, significantly reducing set-up and down time and allowing for multiple diameters within the same arbor reducing inventory requirements.
- Available with carbide, cermet, PCD, or CBN cutting edges.
- A variety of leads provide tailored solutions for every applications.
- Tight tolerances (+/- 0.0002") capable with expandable diameter head design.
- Diameter Range: 0.4646"-2.3858" (11.80mm-60.60)
