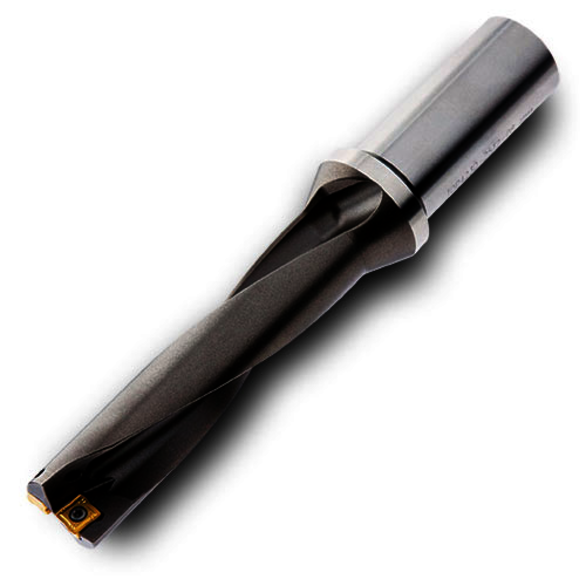

INGCUT 3212425 23 MM Dia Square Indexable Drill
INGCUT 3212425
$769.86
/ EA
Out of Stock
- Shank Diameter - Metric: 25.00 mm
- Coolant Through: Yes
- Depth Ratio: 3xD
- Diameter - Decimal: 0.90551 in
- Diameter - Metric: 23 mm
- Extension Length: 91 mm
- Maximum Chamfer Size: 0.118 in x 45 deg
- Maximum Hole Size: 24 mm
- Overall Length: 147 mm
- Radial Shift: 0.5 in
- Series: QR
- Shank Length: 56.0 mm
- Shank Type: Universal
- Shape: Square
- Style: SOMT
- Square Insert Indexable Drills Metric L:D Ratio - 3:1
- For Lathe Application: Brass Coolant Fitting Should Be Ordered Separately
Applications:
Ingersoll Cutting Tools 3212425 | QUADTWIST | Indexable Insert Drill
