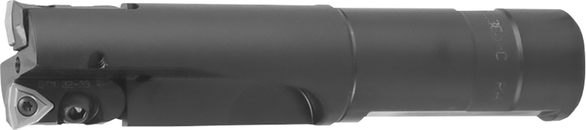

KYOCERA CD2100LC COREMASTER Adjustable Cartridge Extended Length High Performance Right Hand Cutting Indexable Core Drill With Coolant Through Channel, 2.1 to 2.2 in Drill, 1-1/2 in Dia Shank, 1XD Drill Depth by Dia Ratio, 8.19 in OAL, 4-1/2 in D Max Drill

KYOIND OTM86090
$856.40 / EA
Out of Stock
KYOCERA CD2100LC COREMASTER Adjustable Cartridge Extended Length High Performance Right Hand Cutting Indexable Core Drill With Coolant Through Channel, 2.1 to 2.2 in Drill, 1-1/2 in Dia Shank, 1XD Drill Depth by Dia Ratio, 8.19 in OAL, 4-1/2 in D Max Drill
  • Drill Style: CD-LC
  • Drill Diameter: 2.1000 - 2.2500 in
  • Drill Diameter - Decimal: 2.1000 - 2.2500 in
  • Drill Diameter - Metric: 53.34 - 57.15 mm
  • Maximum Drill Depth: 4.5000 in
  • Shank Diameter: 1 1/2 in
  • Shank Diameter - Decimal: 1.5000 in
  • Shank Diameter - Fractional: 1 1/2 in
  • Shank Diameter - Metric: 38.10 mm
  • Cutting Direction: Right-Hand
  • Diameter - Decimal: 2.1 in
  • Diameter - Metric: 53.34 mm
  • Drill Size: 2.1 in
  • Overall Length: 8.19 in
  • Series: CD-COREMASTER
  • Shank Length: 2.69 in
  • Shank Type: Standard Length
  • Through Coolant: Yes
  • Type: Core Drill
  • Weight: 4.55 lbs
Additional Information:

Adjustable cartridges can be adjusted 0.075 per side, providing 0.150 adjustment capability on diameter
