Ceratizit USA

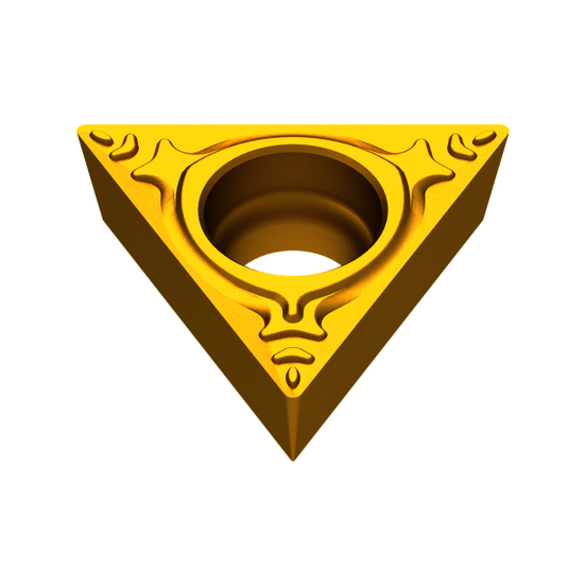

Ceratizit USA 6260170409 TOGX, 090204, BK60, Boring Insert
CERATI 6260170409
$34.47
/ Order multiples of 10 EA
Out of Stock
- Insert Style: TOGX
- Insert Size: 090204
- Material: Carbide
- Inscribed Circle: 5.60 mm
- Thickness: 2.50 mm
- Corner Radius: 0.4
- Chipbreaker: 14
- Coating Process: CVD
- Corner Angle: 60
- Cutting Edge Length: 9.12
- Grade: BK60
- Hole Diameter: 2.80 mm
- Hole Diameter - Metric: 2.8
- Included Angle: 60 Degree
- Insert Angle: 60
- Insert Hand: Neutral
- Insert Height: 2.5
- Insert Holding Method: Screw
- Insert Inscribed Circle: 5.6
- Length: 9.12 mm
- Manufacturer Grade: BK60
- Part Number: 6260170409
- Relief Angle: 8
- Shape: Triangle
- StOB-Class: spj1
- Supplier Id: CE
- Supplier Part Number: 6260170409
- UNSPSC: 23242105
- Inserts are fastened to a compatible toolholder, which then attaches to a lathe or CNC machine
- Inserts can be rotated to a new cutting edge once the old one dulls
