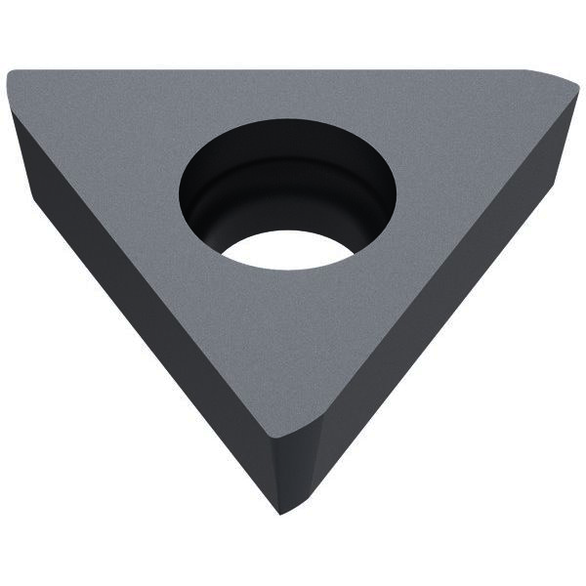

Ceratizit USA
Ceratizit USA 6262186100 TOHX, 140305, BK7615, Boring Insert
CERATI 6262186100
$35.50
/ Order multiples of 10 EA
Out of Stock
- Insert Style: TOHX
- Insert Size: 140305
- Material: Carbide
- Inscribed Circle: 8.20 mm
- Thickness: 3.00 mm
- Corner Radius: 0.5
- Coating: TiCN; Al2O3
- Corner Angle: 60
- Cutting Direction: Neutral
- Cutting Edge Length: 13.62
- Grade: BK7615
- Hole Diameter: 3.80 mm
- Hole Diameter - Metric: 3.8
- Included Angle: 60 Degree
- Insert Angle: 60
- Insert Height: 3
- Insert Holding Method: Screw
- Insert Inscribed Circle: 8.2
- Length: 13.62 mm
- Manufacturer Grade: BK7615
- Part Number: 6262186100
- Relief Angle: 8
- Shape: Triangle
- StOB-Class: spj1
- Supplier Id: CE
- Supplier Part Number: 6262186100
- UNSPSC: 23242105
- Inserts are fastened to a compatible toolholder, which then attaches to a lathe or CNC machine
- Inserts can be rotated to a new cutting edge once the old one dulls
