Walter Tools

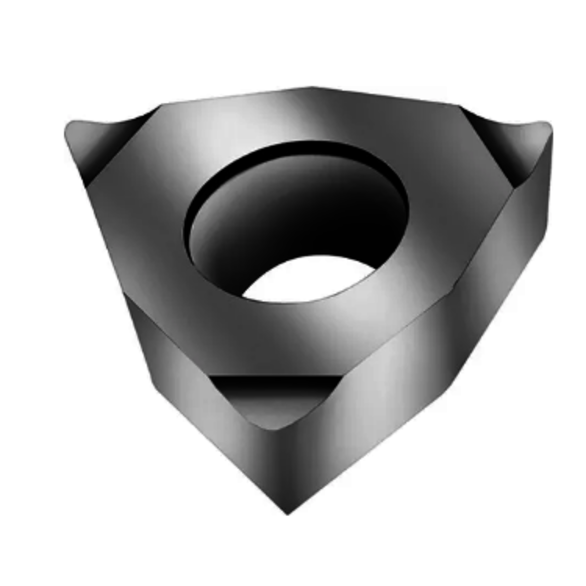

Walter USA 5004432 WCGT, 2.5(2)1, WXM15, Boring Insert
WALTER 5004432
$37.95
/ Order multiples of 10 EA
Out of Stock
- Insert Style: WCGT
- Insert Size: 2.5(2)1
- Material: Solid Carbide
- Inscribed Circle: 8.000 mm
- Thickness: 3.180 mm
- Corner Radius: 0.400 mm
- Chipbreaker: X5
- Coating: TiAlN/TiN
- Coating Process: PVD
- Cutting Direction: Neutral
- Included Angle: 80 Degree
- Insert Hand: Neutral
- Manufacturer Grade: WXM15
- Part Number: 5004432
- Rake: Positive
- Relief Angle: 7 Degree
- Series: Tiger-tec
- Shape: Trigon
- Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times
- Mechanical post-treatment - unique residual stress rate, increased process reliability
- Large, universal chip breaking area and longer tool life for ISO P geometries
- Ground seating surface after coating for improved process reliability when working with interrupted cuts
- Silver flank face indicator layer for extremely easy wear detection
- Micro edge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation
- Extremely smooth rake face for excellent tribochemical wear resistance
Standard/Approvals:WXM15, WCGT050304-X5 WXM15
Walter USA 5004432 WCGT | 2.5(2)1 | WXM15 | 80 Degree | Trigon | Boring Insert
