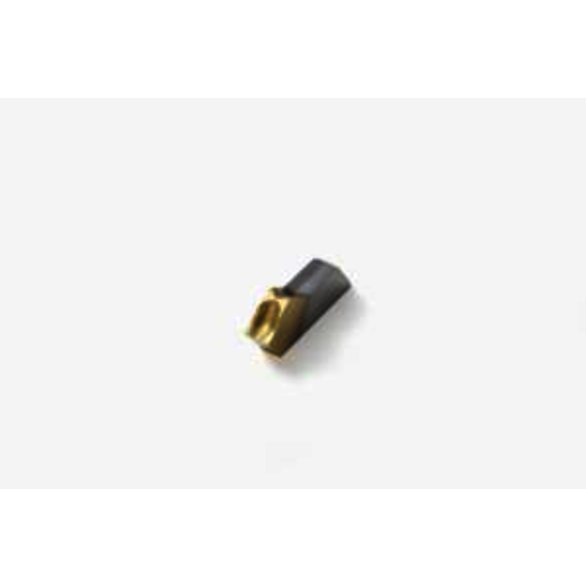

Seco 74005319 Parting-Off Insert, ANSI Code: 150.10-5N-14 T25M, 5 150.10 Insert, Material Grade: M, P, 5.1 mm W Cutting, 6 deg Lead Angle, Neutral Lead Angle Direction, Carbide, Manufacturer's Grade: T25M, CVD-TiC+TiCN+TiN Coated
SECO 74005319
$29.37
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: CVD-TiC+TiCN+TiN Coated
- Material: Carbide
- Insert Size: 5
- Lead Angle Direction: Neutral
- Lead Angle: 6 deg
- Material Grade: M, P
- Manufacturer's Grade: T25M
- Chipbreaker: 14
- Corner Radius: 0.3 in
- Cutting Width - Metric: 5.1 mm
- Hand of Insert: Neutral
- Width - Metric: 5.1 mm
- Tough versatile CVD-coated grade intended for parting off of steel, stainless steel and cast iron at moderate cutting speeds
Seco Parting-Off Insert | 150.10 Insert | 5 Insert | 5.1 mm Cutting Width | 6 deg Lead Angle | Neutral Lead Angle Direction | 5.1 mm Width | 9 mm Length | 14 Chipbreaker | 0.3 mm Corner Radius | Manufacturer's Grade: T25M | ANSI Code: 150.10-5N-14 T25M | Neutral Hand of Insert | Carbide | CVD-TiC+TiCN+TiN Coated | Material Grade: M | P
