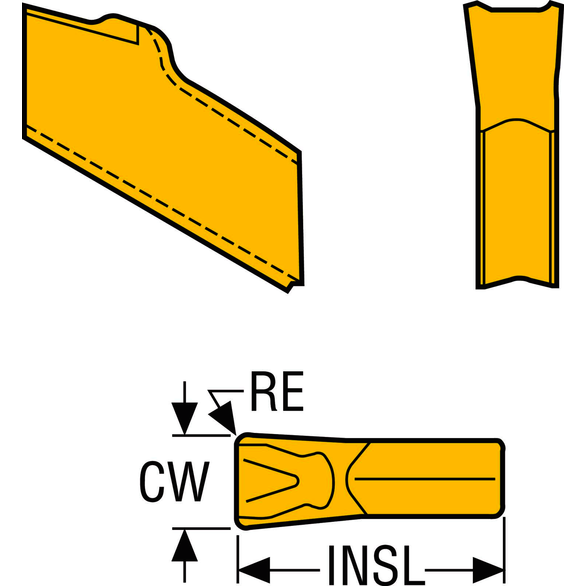

Seco 74016601 Parting-Off Insert, ANSI Code: 150.10-4N-16 T25M, 4 150.10 Insert, Material Grade: M, P, 4.1 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 0 deg Relief Angle, Carbide, Manufacturer's Grade: T25M, CVD-TiC+TiCN+TiN Coated
SECO 74016601
$27.90
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: CVD-TiC+TiCN+TiN Coated
- Material: Carbide
- Insert Style: 150.10
- Insert Size: 4
- Lead Angle Direction: Neutral
- Lead Angle: 0 Degree
- Material Grade: M, P
- Manufacturer's Grade: T25M
- Chipbreaker: 16
- Coating: TiC+TiCN+TiN
- Coating Process: CVD
- Corner Radius: 0.2 in
- Cutting Width: 4.100 mm
- Cutting Width - Metric: 4.1 mm
- Hand of Insert: Neutral
- Insert Hand: Neutral
- Manufacturer Grade: T25M
- Overall Length: 9.000 mm
- Overall Width: 4.100 mm
- Part Number: 16601
- Relief Angle: 0 Degree
- Width - Metric: 4.1 mm
- Tough versatile CVD-coated grade intended for parting off of steel, stainless steel and cast iron at moderate cutting speeds
Seco Parting-Off Insert | 150.10 Insert | 4 Insert | 4.1 mm Cutting Width | 0 deg Lead Angle | Neutral Lead Angle Direction | 0 deg Relief Angle | 4.1 mm Width | 9 mm Length | 16 Chipbreaker | 0.2 mm Corner Radius | Manufacturer's Grade: T25M | ANSI Code: 150.10-4N-16 T25M | Neutral Hand of Insert | Carbide | CVD-TiC+TiCN+TiN Coated | Material Grade: M | P
