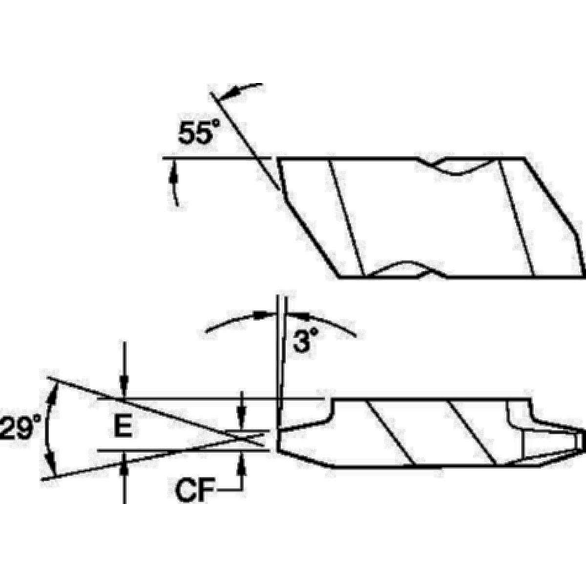

Kennametal 1796501 NA3R10 KC5010, Threading Insert
KENNAM 1796501
$39.71
/ Order multiples of 5 EA
Out of Stock
- Finish/Coating: TiAlN
- Insert Style: NA3R10
- Insert Size: 3
- Manufacturer's Grade: KC5010
- Material Grade: C3/C4
- Rake: Neutral
- Material: Carbide
- Cutting Width: 0.195 in
- Insert Hand: R - Right
- Series: Top Notch
- Thickness: 0.344 in
- Thread Type: Internal/External
- Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN.An advanced PVD AlTiN coating over a very deformation-resistant unalloyed carbide substrate. The new and improved coating enables speeds to be increased by 50–100%.
Standard/Approvals: KC5010, C3/C4, NA3R10
Application: The KC5010 grade is ideal for finishing to general machining of most workpiece materials at higher speeds. Excellent for machining most steels, stainless steels, cast irons, non-ferrous materials, and super alloys under stable conditions. It also performs well machining hardened and short chipping materials.
Kennametal 1796501 NA | 3 | Grade KC5010 | Internal/External | Acme | Threading Insert
