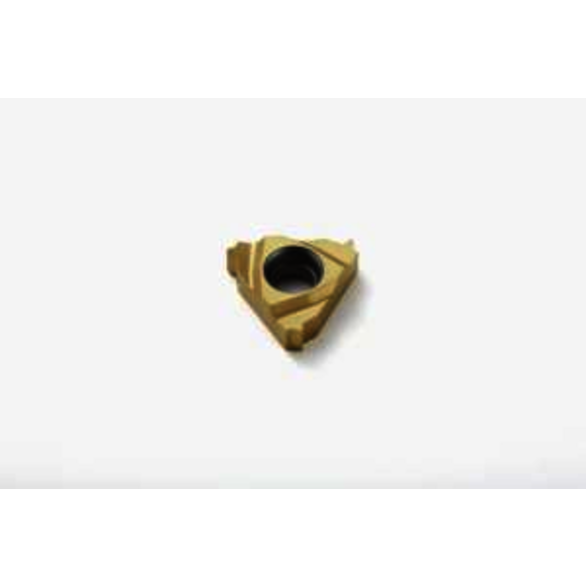

Seco 00023822 Snap-Tap® Laydown Threading Insert, ANSI Code: 09NRA55 CP500, 09NR Insert, 48 to 16 TPI, Internal Thread, 55 deg Partial Profile Thread, 0.5 to 1.5 mm Pitch, Right Hand Cutting, Manufacturer's Grade: CP500, Material Grade: M
SECO 00023822
$44.88
/ Order multiples of 2 EA
Out of Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Insert Size: 9
- Thread Standard: 55 deg Partial Profile
- Manufacturer's Grade: CP500
- Material Grade: M
- Material: Carbide
- Corner Radius: 0.08 in
- Cutting Direction: Right Hand
- Included Angle: 55 deg
- Inscribed Circle - Metric: 5.6 mm
- Pitch: 0.5 to 1.5 in
- Thickness: 2.4 in
- Threads per Inch: 48 to 16
- Thread Type: Internal
INSERT 09NRA55 CP500
