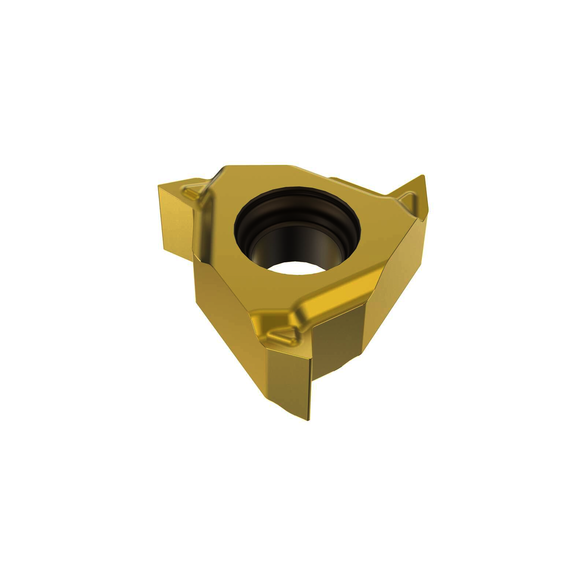

Seco 00046171 Snap-Tap® Laydown Threading Insert, ANSI Code: 11NRA60-A1 CP500, 11NRA Insert, 48 to 16 TPI, Internal Thread, 60 deg Partial Profile Thread, 0.5 to 1.5 mm Pitch, Right Hand Cutting, Manufacturer's Grade: CP500, Material Grade: M
SECO 00046171
$35.88
/ EA
Out of Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Insert Style: 11NR
- Insert Size: 11
- Thread Standard: 60 deg Partial Profile
- Manufacturer's Grade: CP500
- Material Grade: M
- Material: Carbide
- Capacity: 6 mm
- Chipbreaker: A1
- Corner Radius: 0.08 in
- Cutting Direction: Right Hand
- Finish: PVD
- Included Angle: 60 deg
- Inscribed Circle - Metric: 6.4 mm
- Inscribed Circle Size: 1/4 in
- Length: 11 mm
- Pitch: 0.5 to 1.5 in
- Product Name: Threading Insert
- Thickness: 3 in
- Thread Type: Internal
- Threads per Inch: 48 to 16
Seco Threading Insert | Laydown | Series: Snap-Tap | 11NRA Insert | 11 Insert | Internal Thread | 60 deg Partial Profile Thread Standard | 0.5 to 1.5 mm Pitch | 48 to 16 TPI Threads per Inch | 6.4 mm Inscribed Circle | 3 mm Thickness | 11 mm Length | ANSI Code: 11NRA60-A1 CP500 | ISO Code: 11NRA60-A1 CP500 | A1 Chipbreaker | 0.08 mm Corner Radius | 60 deg Included Angle | Manufacturer's Grade: CP500 | Right Hand Cutting Direction | Carbide | PVD-TiAlN+TiN Coated | Material Grade: M
