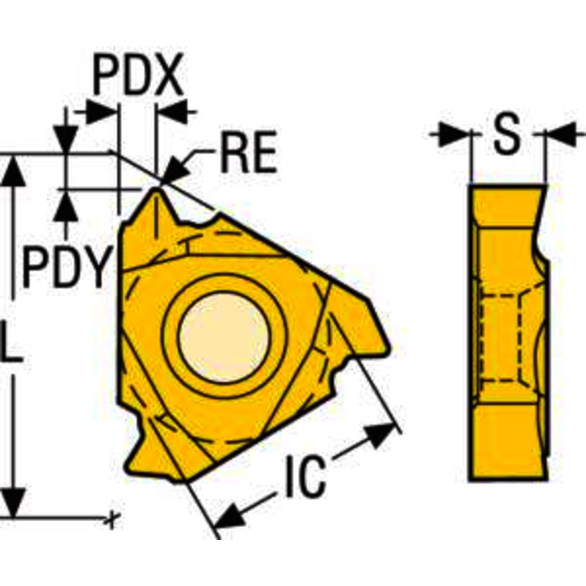

Seco 00050333 Snap-Tap® Laydown Threading Insert, ANSI Code: 16NLAG60 CP500, 16NLAG Insert, 48 to 8 TPI, Internal Thread, 60 deg Partial Profile Thread, 0.5 to 3 mm Pitch, Left Hand Cutting, Manufacturer's Grade: CP500, Material Grade: M
SECO 00050333
$44.88
/ Order multiples of 2 EA
Out of Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Insert Style: 16NLAG
- Insert Size: 16
- Thread Standard: 60 deg Partial Profile
- Manufacturer's Grade: CP500
- Material Grade: M
- Material: Carbide
- Coating: TiAlN+TiN
- Coating Process: PVD
- Corner Radius: 0.08 in
- Cutting Edge to Theoretical Edge Length: 16.500 mm
- Included Angle: 60 deg
- Inscribed Circle: 9.530 mm
- Inscribed Circle - Metric: 9.5 mm
- Insert Hand: Left Hand
- Manufacturer Grade: CP500
- Part Number: 50333
- Pitch: 0.5 to 3 in
- Series: Snap-Tap
- Thickness: 3.5 in
- Threading Diameter: 48.000 mm
- Threads per Inch: 48 to 8
- Thread Type: Internal
Seco Threading Insert | Laydown | Series: Snap-Tap | 16NLAG Insert | 16 Insert | Internal Thread | 60 deg Partial Profile Thread Standard | 0.5 to 3 mm Pitch | 48 to 8 TPI Threads per Inch | 9.5 mm Inscribed Circle | 3.5 mm Thickness | 16.5 mm Length | ANSI Code: 16NLAG60 CP500 | ISO Code: 16NLAG60 CP500 | 0.08 mm Corner Radius | 60 deg Included Angle | Manufacturer's Grade: CP500 | Left Hand Cutting Direction | Carbide | PVD-TiAlN+TiN Coated | Material Grade: M
