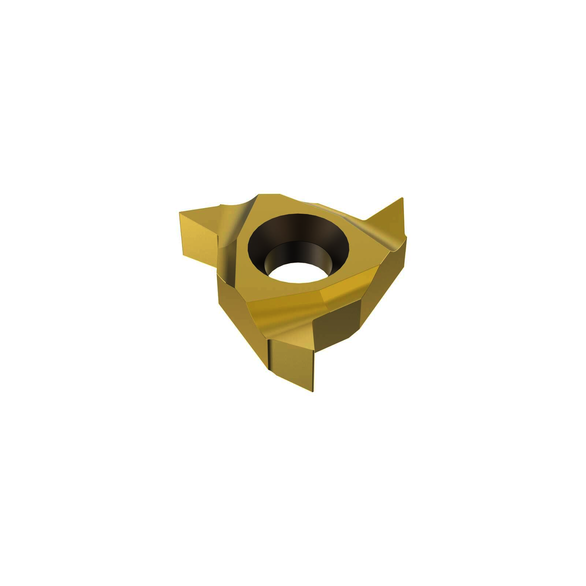

Seco 00064758 Snap-Tap® Laydown Threading Insert, ANSI Code: 16NRA55 CP500, 16NRA Insert, 48 to 16 TPI, Internal Thread, 55 deg Partial Profile Thread, 0.5 to 1.5 mm Pitch, Right Hand Cutting, Manufacturer's Grade: CP500, Material Grade: M
SECO 00064758
$44.88
/ Order multiples of 2 EA
Out of Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Insert Style: 16NR
- Insert Size: 16
- Thread Standard: 55 deg Partial Profile
- Manufacturer's Grade: CP500
- Material Grade: M
- Material: Carbide
- Capacity: 3.5 mm
- Chipbreaker: 09NR/11Nx/16Nx/22Nx
- Corner Radius: 0.08 in
- Cutting Direction: Right Hand
- Finish: TiAlN/TiN/PVD
- Included Angle: 55 deg
- Inscribed Circle - Metric: 9.5 mm
- Inscribed Circle Size: 9.5 mm
- Length: 16.5 mm
- Pitch: 0.5 to 1.5 in
- Series: Snap-Tap
- Thickness: 3.5 in
- Threads per Inch: 48 to 16
- Type: Laydown
- Thread Type: Internal
For high speed applications on cast iron, non-ferrous materials, plastics and other tough to machine materials
Seco Threading Insert | Laydown | Series: Snap-Tap | 16NRA Insert | 16 Insert | Internal Thread | 55 deg Partial Profile Thread Standard | 0.5 to 1.5 mm Pitch | 48 to 16 TPI Threads per Inch | 9.5 mm Inscribed Circle | 3.5 mm Thickness | 16.5 mm Length | ANSI Code: 16NRA55 CP500 | ISO Code: 16NRA55 CP500 | 0.08 mm Corner Radius | 55 deg Included Angle | Manufacturer's Grade: CP500 | Right Hand Cutting Direction | Carbide | PVD-TiAlN+TiN Coated | Material Grade: M
