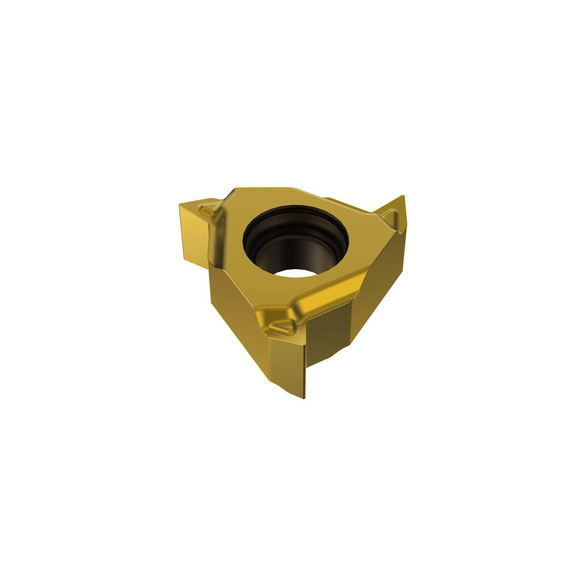

Seco 00075882 Snap-Tap® Laydown Threading Insert, ANSI Code: 22NRN60 CP300, 22NRN Insert, 7 to 5 TPI, Internal Thread, 60 deg Partial Profile Thread, 3.5 to 5 mm Pitch, Right Hand Cutting, Manufacturer's Grade: CP300, Material Grade: P
SECO 00075882
$71.76
/ Order multiples of 2 EA
Out of Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Insert Style: 22NR
- Insert Size: 22
- Thread Standard: 60 deg Partial Profile
- Manufacturer's Grade: CP300
- Material Grade: P
- Material: Carbide
- Corner Radius: 0.25 in
- Cutting Direction: Right Hand
- Finish: PVD
- Included Angle: 60 deg
- Inscribed Circle - Metric: 12.7 mm
- Inscribed Circle Size: 1/2 in
- Length: 22 mm
- Pitch: 3.5 to 5 in
- Product Name: Threading Insert
- Thickness: 4.7 in
- Threads per Inch: 7 to 5
- Thread Type: Internal
Seco Threading Insert | Laydown | Series: Snap-Tap | 22NRN Insert | 22 Insert | Internal Thread | 60 deg Partial Profile Thread Standard | 3.5 to 5 mm Pitch | 7 to 5 TPI Threads per Inch | 12.7 mm Inscribed Circle | 4.7 mm Thickness | 22 mm Length | ANSI Code: 22NRN60 CP300 | ISO Code: 22NRN60 CP300 | 0.25 mm Corner Radius | 60 deg Included Angle | Manufacturer's Grade: CP300 | Right Hand Cutting Direction | Carbide | PVD-TiAlN+TiN Coated | Material Grade: P
