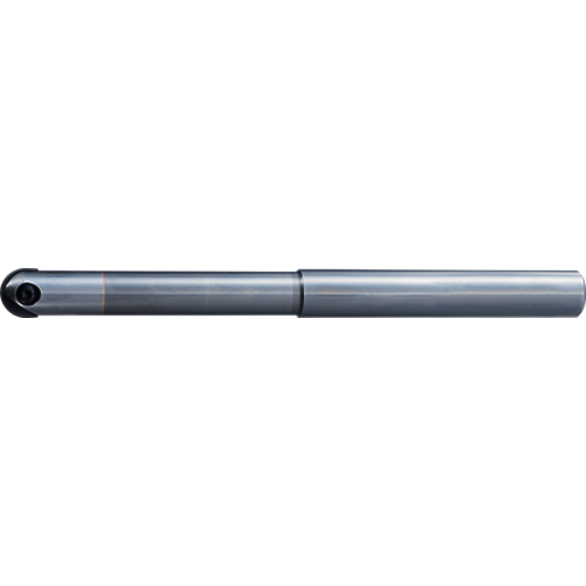

OSG 52100014 9.0000 in OAL, 4.5000 in, Straight Shank, Indexable Ball Nose End Mill
OSG 52100014
$1,208.48
/ EA
Out of Stock
- Cutting Direction: Right Hand
- Series: 52100
- Cutting Diameter: 3/4 in
- Cutting Diameter - Fractional: 3/4 in
- Number of Inserts: 2
- Overall Length: 9 mm
- Overall Length - Metric: 9 mm
- Shank Diameter: 3/4 in
- Shank Diameter - Fractional: 3/4 in
- Shank Length: 4-1/2 in
- Shank Length - Fractional: 4-1/2 in
- Shank Type: Extra-Long Cylindrical
- Material: Carbide
PHOENIX® PFB is a series of high precision indexable finish ballnose end mills for superior surface finish and tool life.
- Very high insert radius precision (±6µm) Superior milling surface finish
- Spiral cutting edge Excellent cutting edge strength and sharpness
- Steel and Carbide tool shanks Reduces chatter and provides favorable milling surface when machining at short or long overhangs
- End mill style, Inch and Metric Complete offering
Application:Ideal for 3-D finishing operations where precision (PFB has 6 micron radius tolerance) and surface finish are critical.For hard milling in hardened steels like D2, H13 and 420 Stainless Steel.3-D machining operations in non-ferrous materials like Graphite or Aluminum Alloy, utilizing OSG’s XC4505 grade diamond-coated insert.
OSG 52100014 0.7500 in Shank Dia | 9.0000 in OAL | 4.5000 in | Straight Shank | Indexable Ball Nose End Mill
