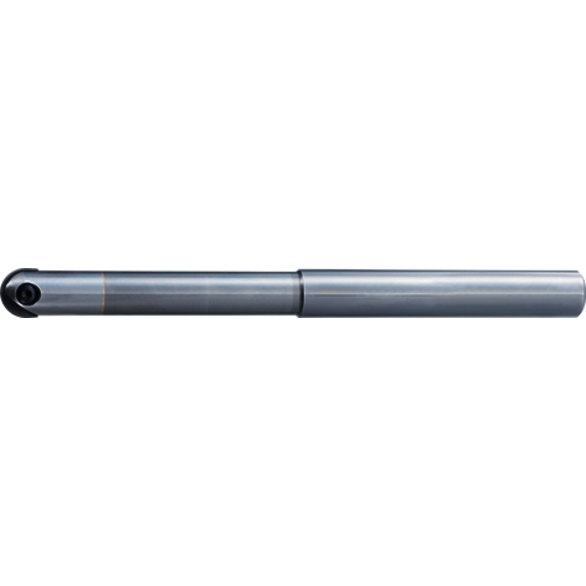

OSG 7801424 240.00 mm OAL, 120.00 mm, Straight Shank, Indexable Ball Nose End Mill
OSG 7801424
$1,208.48
/ EA
Out of Stock
- Cutting Direction: Right Hand
- Series: 78014
- Cutting Diameter: 20 mm
- Cutting Diameter - Metric: 20 mm
- Number of Inserts: 2
- Overall Length: 240 mm
- Overall Length - Metric: 240 mm
- Shank Diameter: 20 mm
- Shank Diameter - Metric: 20 mm
- Shank Length: 120 mm
- Shank Length - Metric: 120 mm
- Shank Type: Extra-Long Cylindrical
- Material: Carbide
PHOENIX® PFB is a series of high precision indexable finish ballnose end mills for superior surface finish and tool life.
- Very high insert radius precision (±6µm) Superior milling surface finish
- Spiral cutting edge Excellent cutting edge strength and sharpness
- Steel and Carbide tool shanks Reduces chatter and provides favorable milling surface when machining at short or long overhangs
- End mill style, Inch and Metric Complete offering
Application:Ideal for 3-D finishing operations where precision (PFB has 6 micron radius tolerance) and surface finish are critical.For hard milling in hardened steels like D2, H13 and 420 Stainless Steel.3-D machining operations in non-ferrous materials like Graphite or Aluminum Alloy, utilizing OSG’s XC4505 grade diamond-coated insert.
OSG 7801424 20.00 mm Shank Dia | 240.00 mm OAL | 120.00 mm | Straight Shank | Indexable Ball Nose End Mill
