Ingersoll Cutting Tools

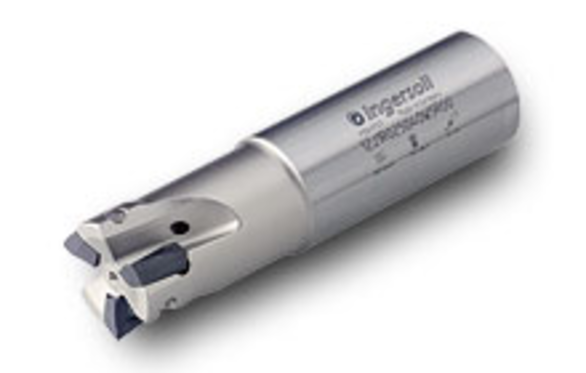

INGCUT 3082449 1 Dia 6 OAL Indexable End Mill

INGCUT 3082449
$666.54 / EA
Out of Stock
INGCUT 3082449 1 Dia 6 OAL Indexable End Mill
  • Cutting Diameter: 1 in
  • Cutting Diameter - Decimal: 1 in
  • Cutting Diameter - Metric: 25.4 mm
  • Series: 12J1R
  • Diameter - Decimal: 0.197 in
  • Overall Length: 6 in
  • Ø.750-1.500" (Weldon)
  • .47" Depth of cut
  • 13 mm Insert with 2 indexes
  • 32-63 Ra surface finishes when engaging the wiper (WEP) Insert corners: .015", .031", .062", .078", .093", .125", .156 R

Standard/Approvals:12J1R-1003780R01

Application:

  • Facing
  • Shoulder
  • Channeling
  • Ramping
  • Helical/Corkscrew
  • Coolant-Thru

    • Ingersoll Cutting Tools 3082449 1 in Cutting Dia | Indexable Copy End Mill
