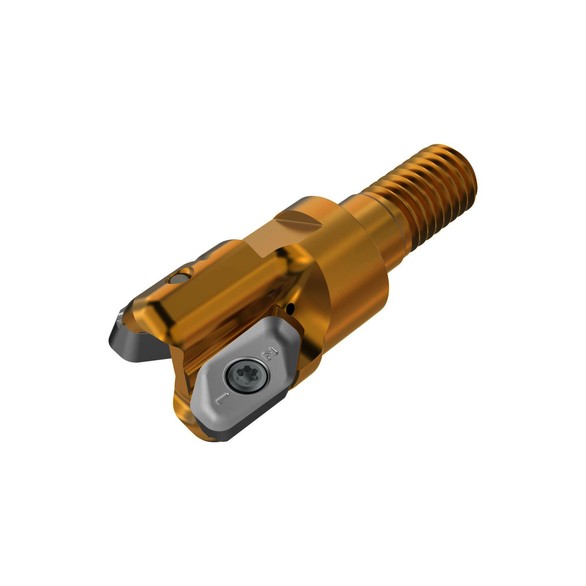

Seco 03245589 2-Flute Metric Indexable Copy End Mill With Through Coolant, ANSI Code: R217.97-0816.RE-X08.2A, R217.97 Toolholder, M8 Modular Connection Thread
SECO 03245589
$462.24
/ EA
Out of Stock
- Insert Diameter: 8 mm
- Cutting Diameter: 0.63 in
- Cutting Diameter - Decimal: 0.63 in
- Cutting Diameter - Metric: 16 mm
- Maximum Depth of Cut: 8 in
- Shank Type: Combimaster
- Modular Connection Size: M8
- Shank Diameter: 8 mm
- Number of Cutter Inserts: 2
- Insert Style: XPKX08
- Toolholder Style: Screw
- Series: R217.97
- Cutting Angle: 90 deg
- Cutting Direction: Right Hand
- Head Length: 23 mm
- Head Length - Metric: 23 mm
- Material: Steel
- Maximum RPM: 40000 RPM
- Minimum Cutting Diameter: 16 mm
- Modular Connection Thread Size: M8
- Number of Flutes: 2
- Number of Inserts: 2
- Overall Length: 100 mm
- Overall Length - Metric: 100 mm
- Part Number: 03245589
- Through Coolant: Through Coolant
- Toolholder Material: Steel
- Toolholder Type: R217.97
- Weldon Flat: No
Application:
Seco Tools 03245589 0.6300 in | 2 | XPKX08 | Indexable Copy End Mill
