Mitsubishi
ENDMILL INDEXABLE SPX4R05024BT50NS
MITMAT 422975
$3,617.72
/ EA
Out of Stock
- Thread Diameter - Metric: M3.5
- Cutting Diameter: 1.968 in
- Cutting Diameter - Decimal: 1.968 in
- Cutting Diameter - Metric: 50 mm
- Shank Type: Taper
- Shank Diameter: 2 in
- Shank Diameter - Decimal: 2.0000 in, 2 in
- Shank Diameter - Metric: 50.8 mm, 50.80 mm
- Series: 202161
- Chamfer Angle: 2.7 deg
- Chip Flute Length: 0.75 in
- Overall Length: 2.262 in
- Pitch: 0.6 mm
- Pre Machined Hole Diameter - Decimal: 0.114 in
- Pre Machined Hole Diameter - Metric: 2.895 mm
- Thread Form Type: M
- Thread Length: 0.472 in
- Thread Series: 202161
- Thread Type: Internal
- Taper Thread Count: 5
- Tool Material: High Speed Steel
- Low cutting resistance due to use of wavy insert

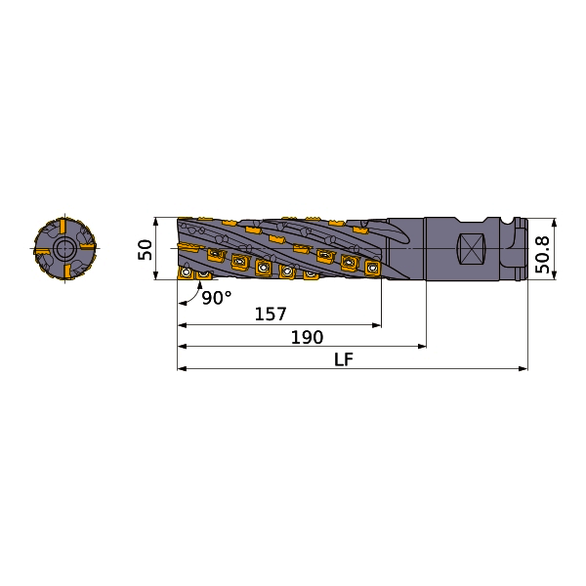

Mitsubishi 422975 1.9680 in Cut Dia | 2.0000 in Shank Dia | Indexable Square-Shoulder End Mill
