Mitsubishi

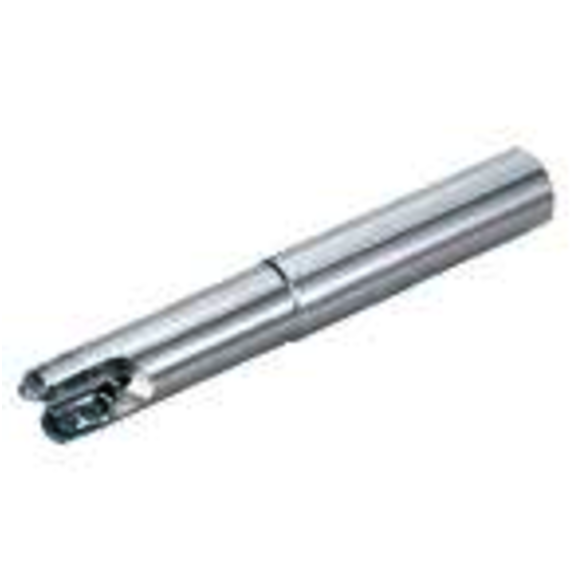

Mitsubishi 565423 0.9843 in Cut Dia, 15.50 mm Max Depth, 0.9843 in Shank Dia, Indexable Square-Shoulder End Mill

MITMAT 565423
$678.21 / EA
Out of Stock
Image for MITMAT 565423
  • Cutting Diameter: 0.9843 in
  • Cutting Diameter - Decimal: 0.9843 in
  • Cutting Diameter - Metric: 25 mm
  • Shank Type: Cylindrical, Straight
  • Shank Diameter: 0.9843 in
  • Shank Diameter - Decimal: 0.9843 in
  • Shank Diameter - Metric: 25 mm, 25.00 mm
  • Series: AXD4000
  • Flute Length: 40.00 mm
  • Insert Compatibility: XDGX175004PDER-GM
  • Length Type: Stub
  • Overall Length: 84.00 mm
  • Point Type: Standard
  • Flute Type: Spiral
  • High rigidity double screw clamp mechanism with centrifugal force resistant structure is adopted
  • Prevents the insert from protruding due to centrifugal force during high-speed rotation, achieving stable machining
  • Supports high-speed machining
  • High balance accuracy: Vibration suppression at high speed rotation
  • Balance accuracy: G6.3.

Standard/Approvals:AXD4000R252SA25SA

Application:

  • Shoulder milling, ramping, 3D profiling, grooving, helical machining, pocket machining, face milling machining.

    • Mitsubishi 565423 0.9843 in Cut Dia | 15.50 mm Max Depth | 0.9843 in Shank Dia | Cylindrical | 125.00 mm | Indexable Square-Shoulder End Mill
