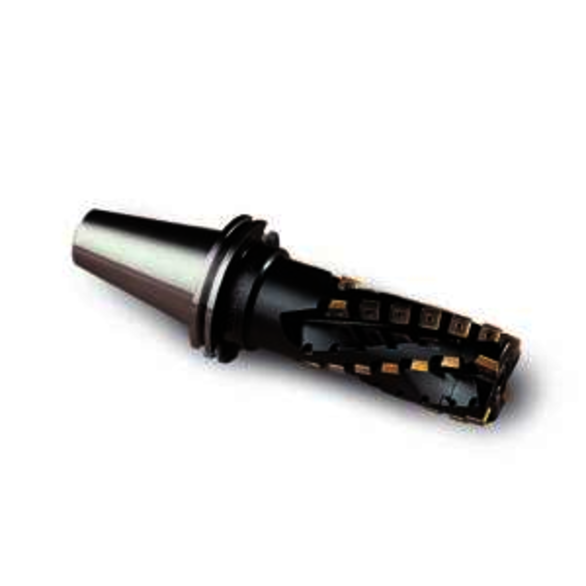

Seco 00027074 Heavy Duty Indexable Helical Mill, ANSI Code: R215.59-CV50063120-12.4SR6, 63 mm Dia Cutting, Tapered Shank, Single-Sided Insert, Left Hand Cutting, 90 deg Lead Angle, 120 mm Max Depth of Cut
- Cutting Diameter: 63 mm
- Cutting Diameter - Metric: 63 mm
- Shank Type: Tapered
- Lead Angle: 90 deg
- Head Length: 165 mm
- Head Length - Metric: 165 mm
- Insert Gage Screw: C45011-T20P
- Maximum Depth of Cut: 120 mm
- Maximum Depth of Cut - Metric: 120 mm
- Number of Inserts: 2
- Overall Length - Metric: 302 mm
Our comprehensive selection of high performance helical milling cutters incorporate the latest geometries and grades to achieve high feed rates, large depths of cut and aggressive metal removal in contouring and profiling operations. In general, these tools employ a small number of teeth and a large helix angle to produce a shearing action that results in smooth, vibration free cuts and fine surface finishes. The helix angle allows the cutter to absorb most of the end load so it smoothly enter and exit the workpiece.
Seco Indexable Helical Mill | Heavy Duty | 63 mm Diameter Cutting | 302 mm Overall Length | 120 mm Maximum Depth of Cut | Single-Sided Insert | 2 Inserts | 165 mm Head Length | Taper Shank | Left Hand Cutting Direction | ANSI Code: R215.59-CV50063120-12.4SR6 | ISO Code: R215.59-CV50063120-12.4SR6 | C45011-T20P Insert Gage Screw | 90 deg Lead Angle
