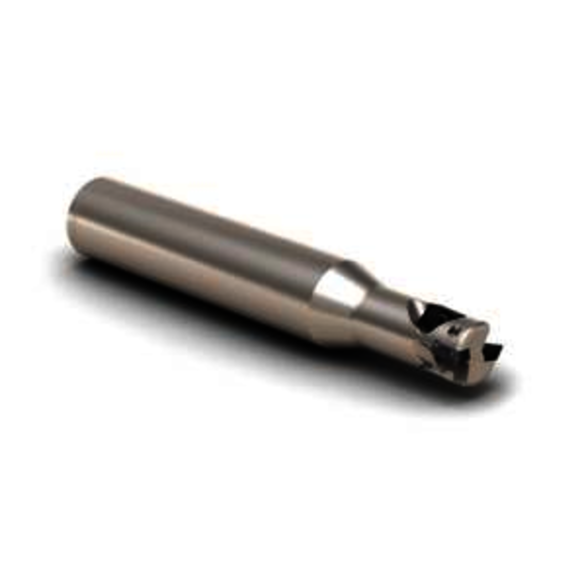

Seco 02709311 Turbo 06 Square Shoulder Indexable Helical Mill, ANSI Code: R217.69-1612.0-10-06.2N, 12 mm Dia Cutting, Cylindrical Shank, Screw Insert, Right Hand Cutting, 90 deg Lead Angle, 10 mm Max Depth of Cut
SECO 02709311
$648.00
/ EA
Out of Stock
- Cutting Diameter: 12 mm
- Cutting Diameter - Metric: 12 mm
- Shank Type: Cylindrical
- Shank Diameter: 16 mm
- Shank Diameter - Metric: 16 mm
- Lead Angle: 90 deg
- Coolant Through: No
- Cutting Direction: Right Hand
- Insert Gage Screw: C01804-T06P
- Maximum Depth of Cut: 10 mm
- Maximum Depth of Cut - Metric: 10 mm
- Number of Inserts: 4
- Overall Length - Metric: 98 mm
- Shank Length: 66 mm
- Shank Length - Metric: 66 mm
Seco's range of high performance Turbo helical cutters offers high feeds, large depths of cut and high metal removal rates in contouring and profiling applications. These cutters provide a first choice for mixed production in all workpiece materials.
For slotting and contouring
Seco Indexable Helical Mill | Square Shoulder | Series: Turbo 06 | 12 mm Diameter Cutting | 98 mm Overall Length | 10 mm Maximum Depth of Cut | Screw Insert | 4 Inserts | Insert Compatibility: XO.X06.. | 16 mm Shank Diameter | Cylindrical Shank | 66 mm Shank Length | Right Hand Cutting Direction | ANSI Code: R217.69-1612.0-10-06.2N | ISO Code: R217.69-1612.0-10-06.2N | C01804-T06P Insert Gage Screw | 90 deg Lead Angle | Through Coolant: No
