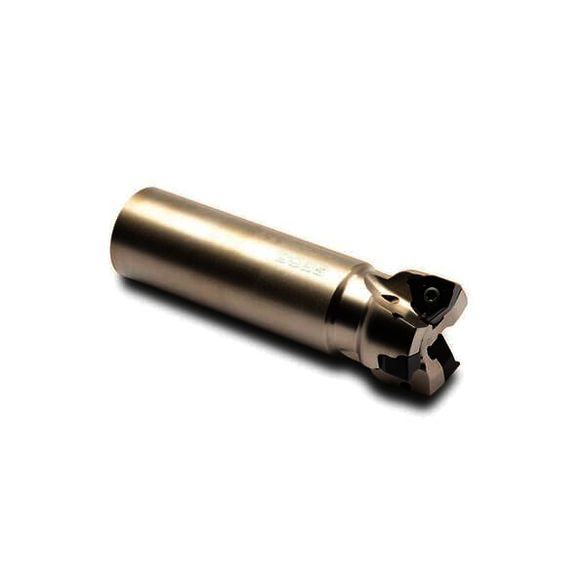

Seco 02768361 Square 6™ Double Sided Insert Indexable Shoulder Mill, ANSI Code: R217.96-2525.0-04-5A, 25 mm Dia Cutting, Cylindrical/C-Locked Shank, Right Hand Cutting, 90 deg Lead Angle, 4 mm Max Depth of Cut

Seco's line of Square 6™ shoulder milling cutters answers the need for added economy in square shoulder milling. This unique square shoulder milling cutter uses trigonal inserts with three cutting edges on each side - 6 total cutting edges to lower the cost per cutting edge. Inserts lock into place via a strong center screw placed in the same direction as cutting forces and wiper flats optimize surface finishes. The 90 deg setting angle ensures a true 90 deg square in one milling operation, eliminating the need for secondary operations and saving valuable production time and money.

Seco Indexable Shoulder Mill | Double Sided Insert | Series: Square 6 | 25 mm Diameter Cutting | 170 mm Overall Length | 4 mm Maximum Depth of Cut | 5 Inserts | Insert Compatibility: XNEX04.. | 25 mm Shank Diameter | Cylindrical/C-Locked Shank | 141 mm Shank Length | Right Hand Cutting Direction | ANSI Code: R217.96-2525.0-04-5A | ISO Code: R217.96-2525.0-04-5A | 90 deg Lead Angle | Through Coolant: Yes | Steel
