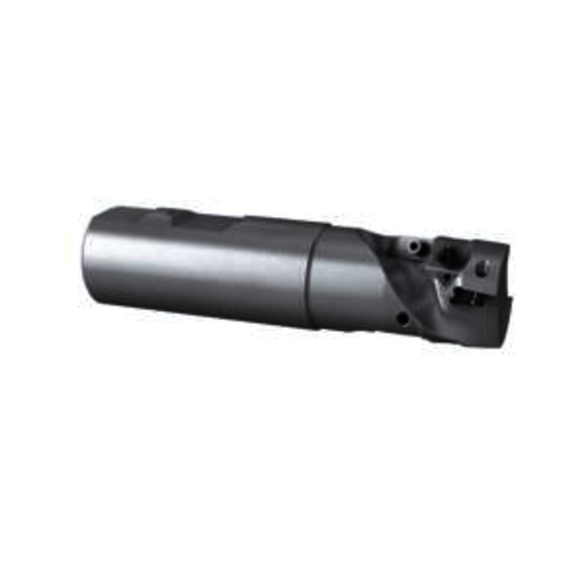

Seco 02829883 Turbo 10 Square Shoulder Face Indexable Helical Mill, ANSI Code: R217.69-01.00-3-01.00-10-2A, 25.4 mm Dia Cutting, Welded-On Shank, Screw Insert, Right Hand Cutting, 90 deg Lead Angle, 26 mm Max Depth of Cut
SECO 02829883
$1,072.44
/ EA
Out of Stock
- Cutting Diameter: 25.4 mm
- Cutting Diameter - Metric: 25.4 mm
- Shank Type: Welded-On
- Shank Diameter: 25.4 mm
- Shank Diameter - Metric: 25.4 mm
- Lead Angle: 90 deg
- Coolant Through: Yes
- Cutting Direction: Right Hand
- Insert Gage Screw: C02506-T07P
- Maximum Depth of Cut: 26 mm
- Maximum Depth of Cut - Metric: 26 mm
- Number of Inserts: 6
- Overall Length - Metric: 101.6 mm
- Shank Length: 58 mm
- Shank Length - Metric: 58 mm
Seco's range of high performance Turbo helical cutters offers high feeds, large depths of cut and high metal removal rates in contouring and profiling applications. These cutters provide a first choice for mixed production in all workpiece materials.
For slotting and contouring
Seco Indexable Helical Mill | Square Shoulder Face | Series: Turbo 10 | 25.4 mm Diameter Cutting | 101.6 mm Overall Length | 26 mm Maximum Depth of Cut | Screw Insert | 6 Inserts | Insert Compatibility: XO.X10T3.. | 25.4 mm Shank Diameter | Weldon Shank | 58 mm Shank Length | Right Hand Cutting Direction | ANSI Code: R217.69-01.00-3-01.00-10-2A | ISO Code: R217.69-01.00-3-01.00-10-2A | C02506-T07P Insert Gage Screw | 90 deg Lead Angle | Through Coolant: Yes
