Widia

VSM890-12 D1.50 Z4 INCH WELDON END MILL VSM890D150Z04W100SN12

WIDIA 6596130
$516.34 / EA
In Stock

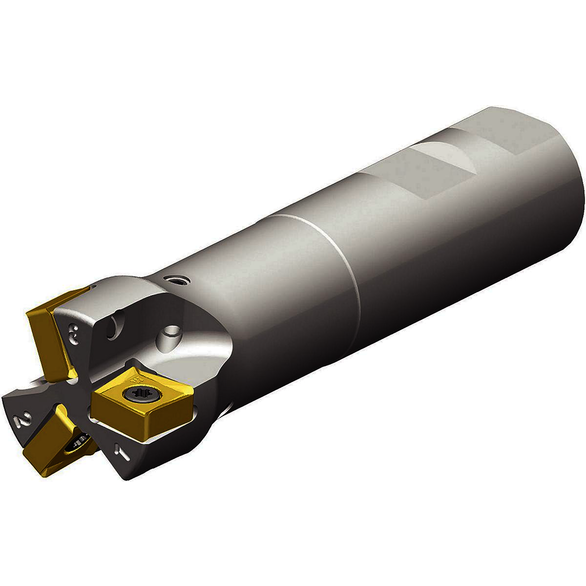

VSM890-12 D1.50 Z4 INCH WELDON END MILL VSM890D150Z04W100SN12
  • Shank Diameter: 1 in
  • Shank Diameter - Decimal: 1 in
  • Shank Diameter - Metric: 25.4 mm
  • Lead Angle: 90 deg
  • Axial Rake Angle: 3 deg
  • Body Diameter - Decimal: 1.4294 in
  • Body Diameter - Metric: 36.306 mm
  • Coolant Hole Diameter - Decimal: 0.1969 in
  • Coolant Hole Diameter - Metric: 5 mm
  • Functional Length: 4.53 in
  • Hand of Tool: R - Right
  • Head Length: 2.25 in
  • Material: Steel
  • Maximum Depth of Cut: 0.3872 in
  • Number of Inserts: 4
  • Overall Length: 4.53 in
  • Radial Rake Angle: -12.9 deg
  • Shank Length: 2.28 in
  • Number of Flutes: 4
  • True 0° wall and stepping down capability.
  • Optimized chip gash design for proper chip evacuation.
  • User-friendly pocket numbering system.
  • Cutter bodies with internal coolant supply.
  • Less bur creation on the workpiece.
