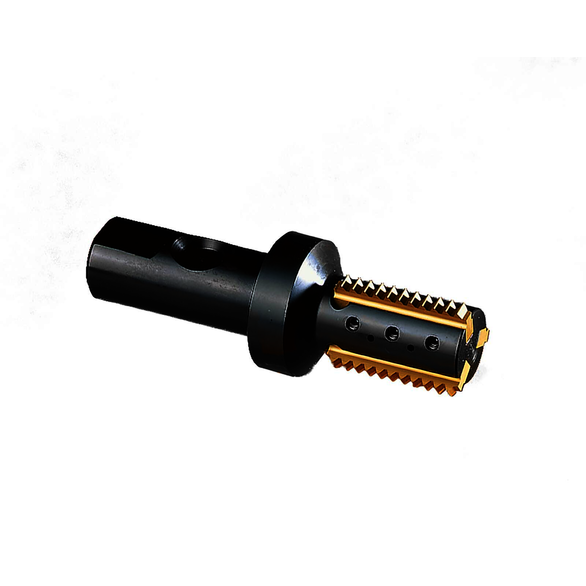

Seco 02546938 Weldon Shank Indexable Thread Mill With Through Coolant, 22 mm Dia Cutting, 40 mm Max Hole Depth, 4003 Insert, R396.19 Tool Holder
- Cutting Diameter - Metric: 22 mm
- Maximum Hole Depth: 1.5748 in
- Insert Size: 4003
- Shank Diameter - Metric: 25.4 mm
- Diameter - Decimal: 0.86614 in
- Diameter - Metric: 22 mm
- Insert Holding Method: Screw
- Number of Threading Inserts: 3
- Overall Length - Metric: 115.5 mm
- Shank Length: 55.5 mm
- Shank Length - Metric: 55.5 mm
- Tool Holder Style: R396.19
- Type: Thread
Seco 396.18/19/20 thread mills are versatile, cost effective process tools for anyone facing a variety of threads, parts and workpiece materials on the same machine. Multi-tooth indexable insert cutters use a double sided multi-tooth insert usable above 14 mm for both internal and external threads. The mills have up to 9 inserts for faster production time. A 40 mm insert is available with different thread profiles and pitches. Precision ground for perfect thread forms, it is available in our tough and durable F30M grade.
Seco Indexable Thread Mill | Weldon Shank | 22 mm Cutting Dia | 40 mm Maximum Hole Depth | 4003 Insert | R396.19 Tool Holder | 25.4 mm Shank Dia | 55.5 mm Shank Length | 115.5 mm Overall Length | 3 Threading Inserts | Screw Insert Holding Method
