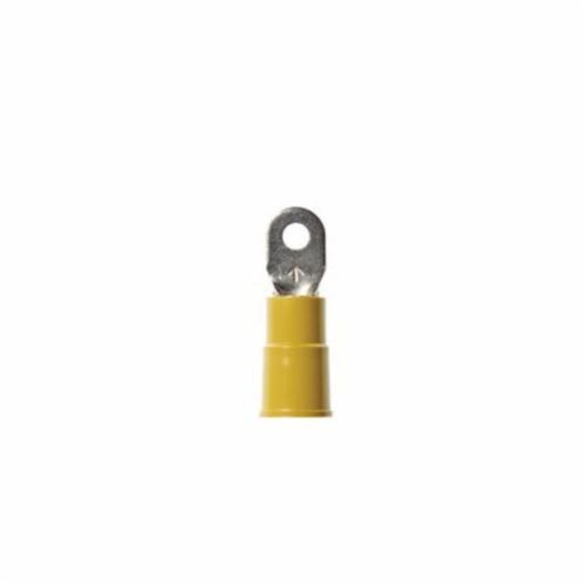

Scotchlok MV10-516R/SK Insulated Standard Ring Tongue Terminal, 12 to 10 AWG, 1.26 in L, Brazed Seam Barrel, Yellow
3M 7000132261
$0.54
/ Order multiples of 500 EA
Out of Stock
- Type: Insulated Standard
- Length: 1.26 in
- Material: Electrolytic Copper
- Color: Yellow
- Barrel Size: 1/4 in L
- Barrel Type: Brazed Seam
- Conductor Size: 12 to 10 AWG
- Dimensions: 0.53 in W x 0.04 in THK
- Stud Size: 5/16 in
- Temperature Rating: -40 to 221 deg F
- Voltage Rating: 600 to 1000 V
Scotchlok Ring Tongue Terminal, Insulated, Standard, 12 to 10 AWG Conductor, 5/16 in Stud, 1.26 in L, Brazed Seam Barrel, 1/4 in L Barrel, 600 to 1000 V, -40 to 221 deg F, Electrolytic Copper, Yellow, 0.53 in W x 0.04 in THK
- Yellow vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Standard-style ring tongue fits around the stud
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- Vinyl insulation
