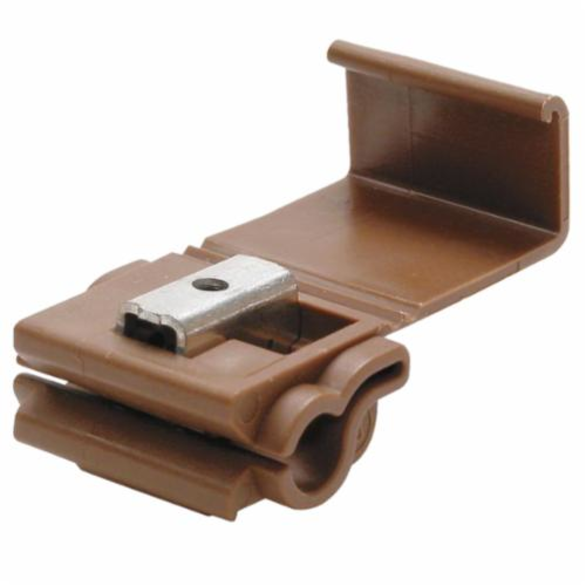

Scotchlok 567 Flame Retardant Self-Stripping Tap Connector, 18 - 14 AWG (Tap), 12 - 10 AWG (Run), Tin Plated Brass
3M 7100167058
$0.74
/ Order multiples of 1000 EA
Out of Stock
- Wire Size: 18 - 14 AWG (Tap), 12 - 10 AWG (Run)
- Color: Brown
- Type: Flame Retardant, Self-Stripping
- Material: Tin Plated Brass
- Voltage Rating: 600 V
- Specifications: 0.145 in (Tap), 0.19 in (Run) Maximum Insulation Diameter, Polypropylene insulated
- Temperature Rating: 221 deg F
Scotchlok Tap Connector, Flame Retardant, Self-Stripping, 18 - 14 AWG (Tap), 12 - 10 AWG (Run) Wire, 600 V, 0.145 in (Tap), 0.19 in (Run) Maximum Insulation Diameter, Polypropylene insulated, 221 deg F, Tin Plated Brass, Brown
- Extended electrically connects a (tap) wire end to a through (run) wire and insulates the connection
- Used for tap splicing
- The suggested application tool is E-9BM crimping tool
- Dual element connection
- 2 ports
