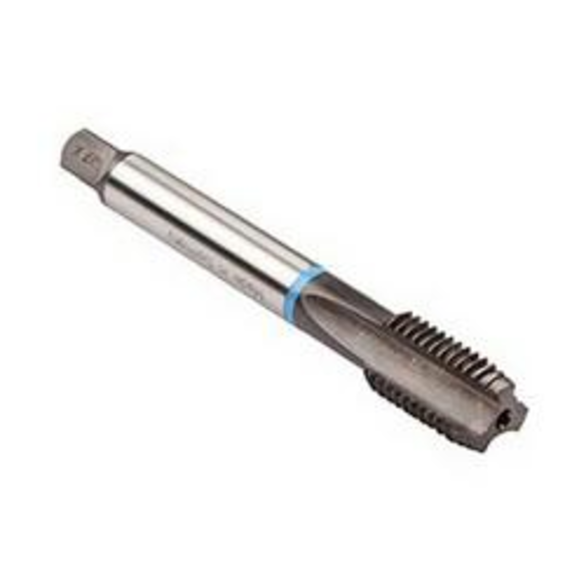

Emuge C1960901.4036 VHM/KHM Rekord 2A-H/E-IKZ Form E Reduced Shank Pipe Tap With Axial Coolant, 0 deg Helix
EMUGE C1960901.4036
$656.79
/ EA
Out of Stock
- Thread Size: 1/4-19
- Thread Standard: G (BSP)
- Material: Carbide
- Finish/Coating: Bright
- Number of Flutes: 4
- Chamfer Type: Bottoming
- Class of Fit: X
- Cutting Direction: Right Hand
- Overall Length - Fractional: 5-1/4 in
- Series: VHM/KHM Rekord 2A-H/E-IKZ C1960901
- Shank Diameter - Metric: 11 mm
- Square Size - Metric: 9 mm
- Tap Drill Size - Metric: 11.8 mm
- Thread Length - Metric: 22 mm
- IKZ - axial coolant hole design
- Sub-micro grain carbide substrate
- DIN/DIN standard dimensions for overall length and shank size
Standards/Approvals: DIN/DIN Standard|DIN EN ISO 228|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For through or blind hole applications in high tensile strength, short chipping materials
Emuge Pipe Tap | Form E Reduced Shank | Series: VHM/KHM Rekord 2A-H/E-IKZ C1960901 | Measurement System: Imperial | 1/4-19 Size | G (BSP) Thread Standard | 0 deg Helix Angle | Bottoming Chamfer | 22 mm Thread Length | 5-1/4 in Overall Length | 4 Flutes | Right Hand Cutting Direction | Class of Fit: X | 11 mm Shank Diameter | 11.8 mm Tap Drill | 9 mm Square | Carbide | Bright
