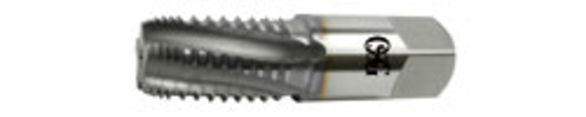

OSG 1205400508 1/2-14, NPTF, 5 Flute, Interrupted Thread Pipe Tap
OSG 1205400508
$162.79
/ EA
Out of Stock
- Square Size: 0.514
- Thread Length: 1.374 in
- Thread Size: 1/2-14
- Thread Standard: NPTF
- Material: HSS-E
- Finish/Coating: TiCN Coated
- Number of Flutes: 5
- Chamfer Type: 2.5P Modified Bottoming
- Cutting Direction: Right Hand
- Helix Angle: 10
- Measurement System: Imperial
- Overall Length - Decimal: 3.12 mm
- Series: 12054
- Shank Diameter - Decimal: 0.687 in
- Shank Length - Fractional: 1-47/64 in
HY-PRO® PIPE taps are the original Do it All premium pipe tap for every threading application.
- HSSE material
- Increased wear resistance
- TiCN coating
- Improves wear resistance for extended tap life
- NPT & NPTF
- For standard and dry seal tapered pipe thread applications
- Low helix
- Efficient chip evacuation
- Interrupted thread
- Reduced cutting torque
Application:Carbon Steel, Die Steel, Stainless Steel, Alloy Steel, hardened Steel <35Rc
OSG 1205400508 1/2-14 | NPTF | 5 Flute | TiCN | HSSE | Interrupted Thread Pipe Tap
