Nachi 52623 8.00 mm, D5, 3, Spiral Point STI Tap

NACHI 52623
$15.48 / EA
Out of Stock

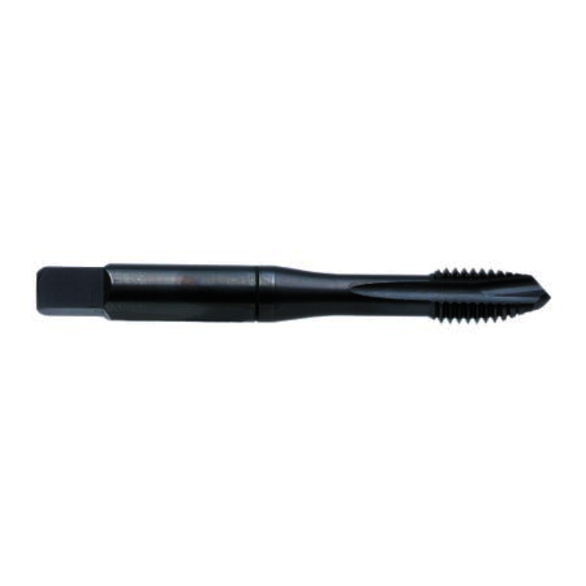

Image for NACHI 52623
  • Thread Size: 8.00 mm
  • Chamfer: Plug
  • Number of Flutes: 3
  • Thread Limit: D5
  • Finish/Coating: Black Oxide
  • Material: Cobalt Vanadium High Speed Steel
  • Overall Length: 2-23/32 in
  • Part Number: 52623
  • Series/List: 982
  • Shank Diameter: 0.3180 in
  • Shank Diameter - Decimal: 0.3180 in
  • Thread Length: 0.6690 in
  • The NACHI VTP Series tap is made from HSS-V, which is perfect for longer tapping actions. It also has extended tool life. This heat-treated tap has extra toughness, which makes rigorous tapping tasks easy
  • The tap provides high flexibility for working with a wide variety of materials and working conditions
  • This spiral-pointed tap from NACHI has a sophisticated design to allow for the stable cutting of threads
  • The VTP Series tap from NACHI is made of HSS-V, with an added black oxide final coat, and the tap is heat-treated
  • It is a right-hand cut tap with a ANSI #2-56 to 1-8 thread size, H2/H3 thread limit, and three straight flutes for threading. With this spiral-pointed tap, you get control over the size of the tapped hole
  • The tap is provided with a specific design to deliver optimum performance during tapping tasks.

Application:

  • Utilized for tapping through a whole range of materials, such as high-temp exotic alloys, ferrous and non-ferrous materials, cast iron, plastics, etc
  • High-quality plug chamfer tap is perfect for through-hole tapping
  • Automotive
  • Construction
  • Manufacturing and endless other industries

    • Nachi 52623 8.00 mm | D5 | 3 | Plug | Spiral Point STI Tap
