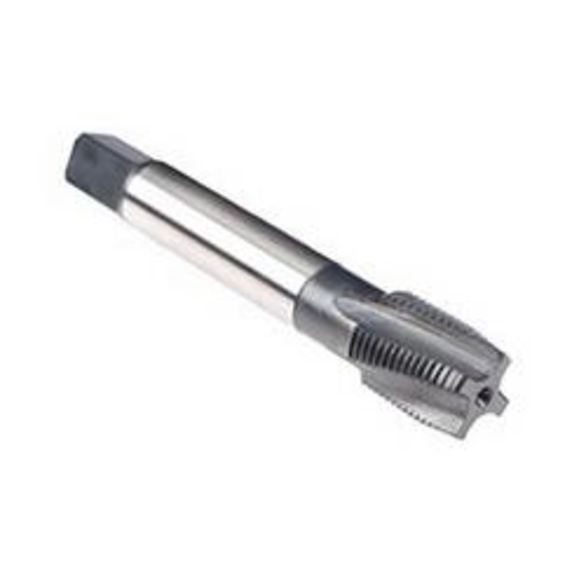

Emuge AU306001.5050 Rekord C-TI AU306001 Form D Reduced Shank Spiral Flute Tap, Left Hand Cutting, 3/4-16 Thread, Plug Chamfer, Left Hand Flute Direction, 4 Flutes, NT2 Coated, HSS-E
EMUGE AU306001.5050
$249.98
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: 3/4-16
- Material: HSS-E
- Finish/Coating: NT2 Coated
- Number of Flutes: 4
- Flute Direction: Left Hand
- Class of Fit: 2BX
- Chamfer Type: Plug
- Overall Length - Fractional: 4-1/4 in
- Series: Rekord C-TI AU306001
- Shank Diameter: 0.59 in
- Thread Length: 0.984 in
- Thread Standard: UNF
- NT2 surface treatment - nitriding and oxidation - the surface of the tools is first nitrided and then oxidized (NT + NE2)
- This treatment combines increased surface hardness with an improved lubricant holding capacity
- ANSI/ANSI standard dimensions for overall length and shank size
- Taps with ANSI standard overall length dimensions are shorter than taps made to DIN standards
Standards/Approvals: ANSI/ANSI Specified|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For through hole applications
Emuge Spiral Flute Tap | Form D Reduced Shank | Series: Rekord C-TI AU306001 | Measurement System: Imperial | UNF | 3/4-16 | Plug Chamfer | 4 Flutes | HSS-E | NT2 Coated | Class of Fit: 2BX | Left Hand Cutting | 0.984 in Thread Length | 4-1/4 in Overall Length | 0.59 in Shank Dia | Left Hand Flute Direction
