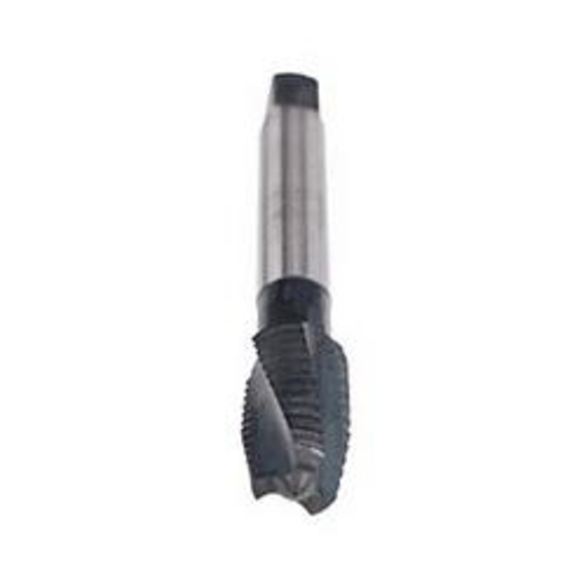

Emuge AU306011.5013 Rekord C-TI AU306011 Form D Reduced Shank Spiral Flute Tap, Left Hand Cutting, 1/2-13 Thread, Plug Chamfer, Left Hand Flute Direction, 3 Flutes, NT2 Coated, HSS-E
EMUGE AU306011.5013
$104.28
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: 1/2-13
- Material: HSS-E
- Finish/Coating: NT2 Coated
- Number of Flutes: 3
- Flute Direction: Left Hand
- Class of Fit: 3BX
- Chamfer Type: Plug
- Overall Length: 3.38 in
- Series: Rekord C-TI AU306011
- Shank Diameter: 0.367 in
- Shank Length: 2.396 in
- Thread Length: 0.984 in
- Thread Standard: UNC
- Rekord C-TI is a left hand spiral tap designed for titanium alloys and high tensile strength materials
- Manufactured to produce a 3B tolerance thread form
- NT2 surface treatment - nitriding and oxidation - the surface of the tools is first nitrided and then oxidized (NT + NE2)
- This treatment combines increased surface hardness with an improved lubricant holding capacity
- ANSI/ANSI standard dimensions on overall length and shank size
- Taps with ANSI standard overall length dimensions are shorter than taps made to DIN standards
Standards/Approvals: ANSI/ANSI Specified|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For through hole applications
Emuge Spiral Flute Tap | Form D Reduced Shank | Series: Rekord C-TI AU306011 | Measurement System: Imperial | UNC | 1/2-13 | Plug Chamfer | 3 Flutes | HSS-E | NT2 Coated | Class of Fit: 3BX | Left Hand Cutting | 0.984 in Thread Length | 3.38 in Overall Length | 0.367 in Shank Dia | 2.396 in Shank Length | Left Hand Flute Direction
