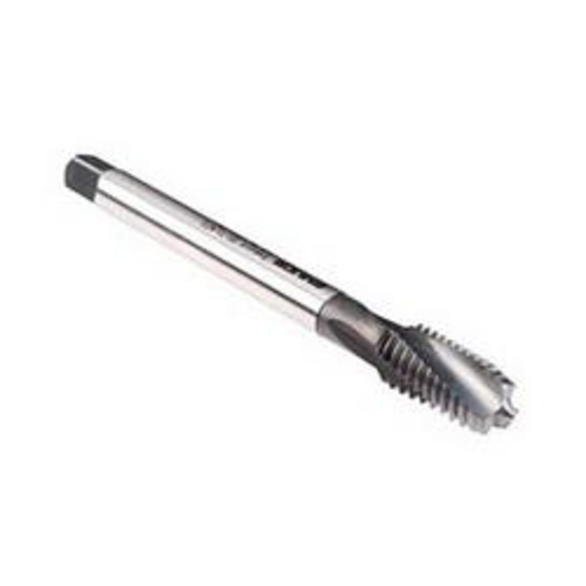

Emuge AU456001.5014 Rekord D-TI AU456001 Form C Reduced Shank Spiral Flute Tap, Right Hand Cutting, 9/16-12 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, NT2 Coated, HSS-E
EMUGE AU456001.5014
$145.51
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: 9/16-12
- Material: HSS-E
- Finish/Coating: NT2 Coated
- Number of Flutes: 3
- Flute Direction: Right Hand
- Class of Fit: 2BX
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Overall Length: 3.59 in
- Series: Rekord D-TI AU456001
- Shank Diameter: 0.429 in
- Shank Length: 2.566 in
- Thread Standard: UNC
- Thread Length: 1.024 in
- Rekord D-TI tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines
- Best suited for titanium and high tensile strength materials in blind hole applications
- NT2 surface treatment combines a nitride process with steam oxide for additional surface hardens and lubricity
- ANSI/ANSI standard dimensions for overall length and shank size
- Taps with ANSI standard overall length dimensions are shorter than taps made to DIN standards
Standards/Approvals: ANSI/ANSI Specified|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
Emuge Spiral Flute Tap | Form C Reduced Shank | Series: Rekord D-TI AU456001 | Measurement System: Imperial | UNC | 9/16-12 | Modified Bottoming Chamfer | 3 Flutes | HSS-E | NT2 Coated | Class of Fit: 2BX | Right Hand Cutting | 1.024 in Thread Length | 3.59 in Overall Length | 0.429 in Shank Dia | 2.566 in Shank Length | Right Hand Flute Direction
