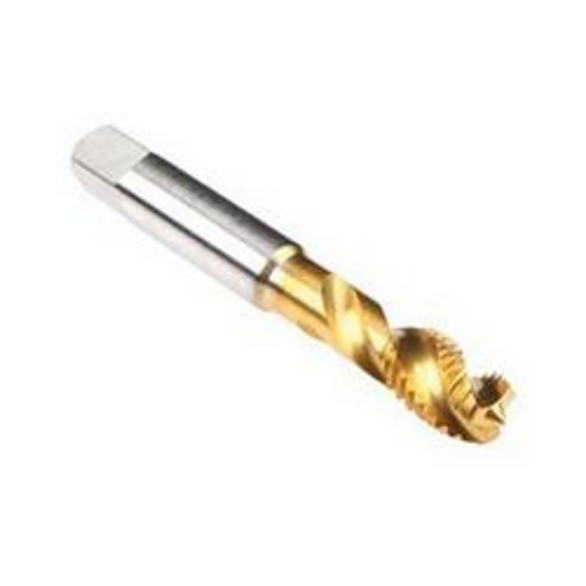

Emuge AU501400.0040 Enorm STEEL AU501400 Form C Reinforced Shank Spiral Flute Tap, Right Hand Cutting, M4x0.7 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiN Coated, HSS-E
EMUGE AU501400.0040
$64.00
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: M4x0.7
- Material: HSS-E
- Finish/Coating: TiN Coated
- Number of Flutes: 3
- Flute Direction: Right Hand
- Class of Fit: 6H
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Overall Length: 2.13 in
- Series: Enorm STEEL AU501400
- Shank Diameter: 0.168 in
- Shank Length: 1.303 in
- Thread Length: 0.512 in
- Thread Standard: Coarse
- The Enorm VA design is typically for blind hole threads in long chipping materials
- The fast spiral flute (35 deg) provides good chip removal from blind holes
- VA designates that the tool is designed for stainless steel and steel alloys
- ANSI/ANSI standard dimensions for overall length and shank size
- Taps with ANSI standard overall length dimensions are shorter than taps made to DIN standards
Standards/Approvals: ANSI/ANSI Specified|DIN 13|DIN ISO 965-1|ASME B1.13M|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
Emuge Spiral Flute Tap | Form C Reinforced Shank | Series: Enorm STEEL AU501400 | Measurement System: Metric | Coarse | M4x0.7 | Modified Bottoming Chamfer | 3 Flutes | HSS-E | TiN Coated | Class of Fit: 6H | Right Hand Cutting | 0.512 in Thread Length | 2.13 in Overall Length | 0.168 in Shank Dia | 1.303 in Shank Length | Right Hand Flute Direction
