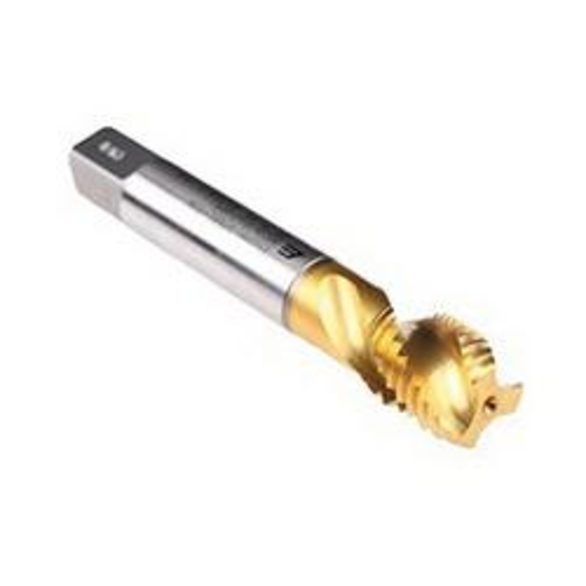

Emuge AU501400.0120 Enorm STEEL AU501400 Form C Reduced Shank Spiral Flute Tap, Right Hand Cutting, M20x2.5 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiN Coated, HSS-E
EMUGE AU501400.0120
$250.79
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: M20x2.5
- Material: HSS-E
- Finish/Coating: TiN Coated
- Number of Flutes: 3
- Flute Direction: Right Hand
- Class of Fit: 6H
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Series: Enorm STEEL AU501400
- Shank Diameter: 0.652 in
- Shank Length: 3.289 in
- Thread Length: 1.181 in
- Thread Standard: Coarse
- Overall Length: 4.47 in
- The Enorm VA design is typically for blind hole threads in long chipping materials
- The fast spiral flute (35 deg) provides good chip removal from blind holes
- VA designates that the tool is designed for stainless steel and steel alloys
- ANSI/ANSI standard dimensions for overall length and shank size
- Taps with ANSI standard overall length dimensions are shorter than taps made to DIN standards
Standards/Approvals: ANSI/ANSI Specified|DIN 13|DIN ISO 965-1|ASME B1.13M|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
Emuge Spiral Flute Tap | Form C Reduced Shank | Series: Enorm STEEL AU501400 | Measurement System: Metric | Coarse | M20x2.5 | Modified Bottoming Chamfer | 3 Flutes | HSS-E | TiN Coated | Class of Fit: 6H | Right Hand Cutting | 1.181 in Thread Length | 4.47 in Overall Length | 0.652 in Shank Dia | 3.289 in Shank Length | Right Hand Flute Direction
