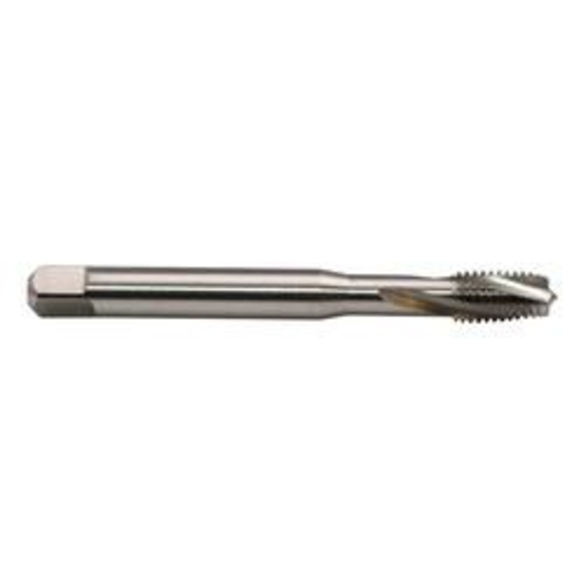

Emuge B0451000.0040 Rekord 1D-STEEL B0451000 Form C Reinforced Shank Spiral Flute Tap, Right Hand Cutting, M4x0.7 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Bright, HSS-E
EMUGE B0451000.0040
$54.89
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: M4x0.7
- Material: HSS-E
- Finish/Coating: Bright
- Number of Flutes: 3
- Flute Direction: Right Hand
- Class of Fit: 6H
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Overall Length - Metric: 63 mm
- Series: Rekord 1D-STEEL B0451000
- Shank Diameter - Metric: 4.5 mm
- Shank Length - Metric: 42 mm
- Thread Length - Metric: 13 mm
- Thread Standard: Coarse
- Rekord D tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines
- DIN/DIN standard dimensions on overall length and shank size
Standards/Approvals: DIN/DIN Standard|DIN 13|DIN ISO 965-1|ASME B1.13M|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
Emuge Spiral Flute Tap | Form C Reinforced Shank | Series: Rekord 1D-STEEL B0451000 | Measurement System: Metric | Coarse | M4x0.7 | Modified Bottoming Chamfer | 3 Flutes | HSS-E | Bright | Class of Fit: 6H | Right Hand Cutting | 13 mm Thread Length | 63 mm Overall Length | 4.5 mm Shank Dia | 42 mm Shank Length | Right Hand Flute Direction
