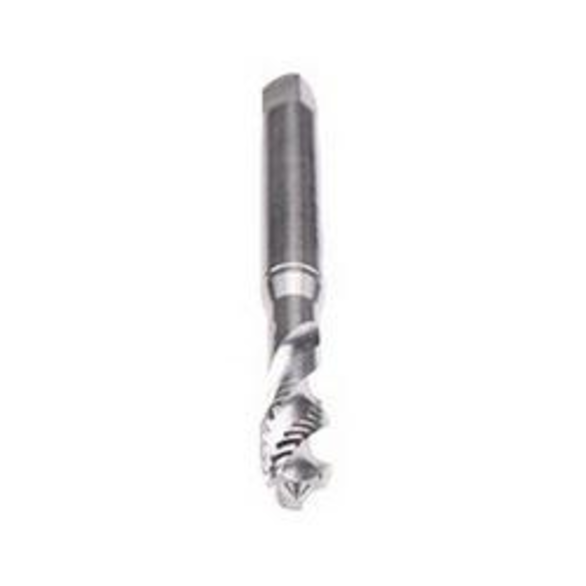

Emuge B0501050.0050 Enorm 1-STEEL-LH B0501050 Form C Reinforced Shank Spiral Flute Tap, Right Hand Cutting, M5x0.8 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Bright, HSS-E
EMUGE B0501050.0050
$71.80
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: M5x0.8
- Material: HSS-E
- Finish/Coating: Bright
- Number of Flutes: 3
- Flute Direction: Right Hand
- Class of Fit: 6H
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Overall Length - Metric: 70 mm
- Series: Enorm 1-STEEL-LH B0501050
- Shank Length - Metric: 45 mm
- Thread Length - Metric: 15 mm
- Thread Standard: Coarse
- Shank Diameter - Metric: 6 mm
- The fast left hand spiral flute (35 deg) provides good chip removal from blind holes
- Depending on design and size, threads up to 3XD can be cut
- DIN/DIN standard dimensions on overall length and shank size
Standards/Approvals: DIN/DIN Standard|DIN 13|DIN ISO 965-1|ASME B1.13M|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For blind hole threads in long chipping materials
Emuge Spiral Flute Tap | Form C Reinforced Shank | Series: Enorm 1-STEEL-LH B0501050 | Measurement System: Metric | Coarse | M5x0.8 | Modified Bottoming Chamfer | 3 Flutes | HSS-E | Bright | Class of Fit: 6H | Right Hand Cutting | 15 mm Thread Length | 70 mm Overall Length | 6 mm Shank Dia | 45 mm Shank Length | Right Hand Flute Direction
