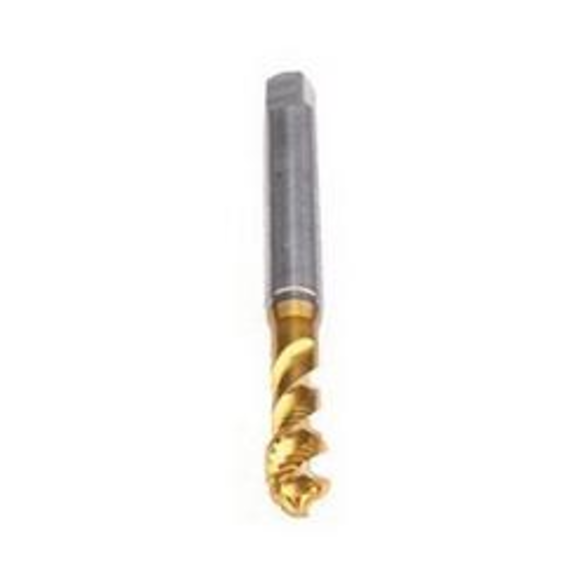

Emuge B0501400.0100 Enorm 1-STEEL B0501400 Form C Fast Reinforced Shank Spiral Flute Tap, Right Hand Cutting, M10x1.5 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiN Coated, HSS-E
EMUGE B0501400.0100
$84.96
/ EA
Out of Stock
- Coolant Through: No
- Material: HSS-E
- Finish/Coating: TiN Coated
- Number of Flutes: 3
- Flute Direction: Right Hand
- Class of Fit: 6H
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Overall Length - Metric: 100 mm
- Series: Enorm 1-STEEL B0501400
- Shank Length - Metric: 61 mm
- Thread Length - Metric: 22 mm
- Thread Standard: Coarse
- Shank Diameter - Metric: 10 mm
- The Enorm STEEL design is typically for blind hole threads in long chipping materials
- The fast spiral flute (35 deg) provides good chip removal from blind holes
- TiN coated for additional tool life
- DIN/DIN standard dimensions on overall length and shank size
Standards/Approvals: DIN/DIN Standard|DIN 13|DIN ISO 965-1|ASME B1.13M|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
Emuge Spiral Flute Tap | Form C Fast Reinforced Shank | Series: Enorm 1-STEEL B0501400 | Measurement System: Metric | Coarse | M10x1.5 | Modified Bottoming Chamfer | 3 Flutes | HSS-E | TiN Coated | Class of Fit: 6H | Right Hand Cutting | 22 mm Thread Length | 100 mm Overall Length | 10 mm Shank Dia | 61 mm Shank Length | Right Hand Flute Direction
