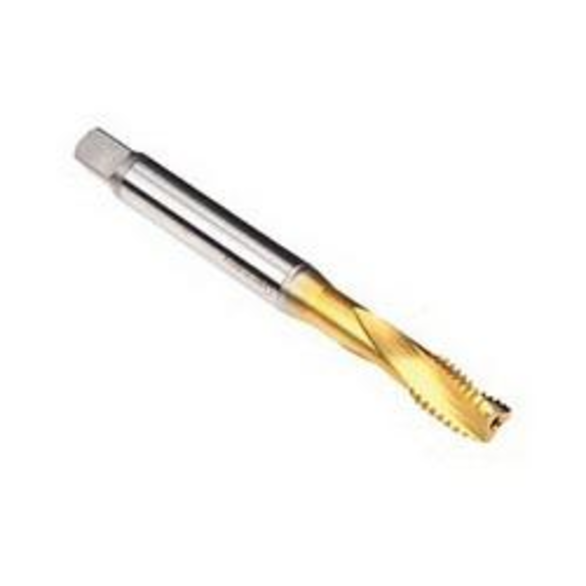

Emuge B0963701.0050 Rekord 1D-Z-IKZ B0963701 Form C Reinforced Shank Slow Helix Spiral Flute Tap, Right Hand Cutting, M5x0.8 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiN Coated, HSS-E
EMUGE B0963701.0050
$84.09
/ EA
Out of Stock
- Coolant Through: Yes
- Thread Size: M5x0.8
- Material: HSS-E
- Finish/Coating: TiN Coated
- Number of Flutes: 3
- Flute Direction: Right Hand
- Class of Fit: 6HX
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Overall Length - Metric: 70 mm
- Series: Rekord 1D-Z-IKZ B0963701
- Shank Length - Metric: 45 mm
- Thread Length - Metric: 15 mm
- Thread Standard: Coarse
- Shank Diameter - Metric: 6 mm
- Rekord D-Z tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines
- Designed with internal coolant supply, this tap type will help to solve chip problems on CNC machines
- IKZ - axial coolant hole design
- TiN coated for additional tool life
- DIN/DIN standard dimensions on overall length and shank size
Standards/Approvals: DIN/DIN Standard|DIN 13|DIN ISO 965-1|ASME B1.13M|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
Emuge Spiral Flute Tap | Form C Reinforced Shank Slow Helix | Series: Rekord 1D-Z-IKZ B0963701 | Measurement System: Metric | Coarse | M5x0.8 | Modified Bottoming Chamfer | 3 Flutes | HSS-E | TiN Coated | Class of Fit: 6HX | Right Hand Cutting | 15 mm Thread Length | 70 mm Overall Length | 6 mm Shank Dia | 45 mm Shank Length | Right Hand Flute Direction
