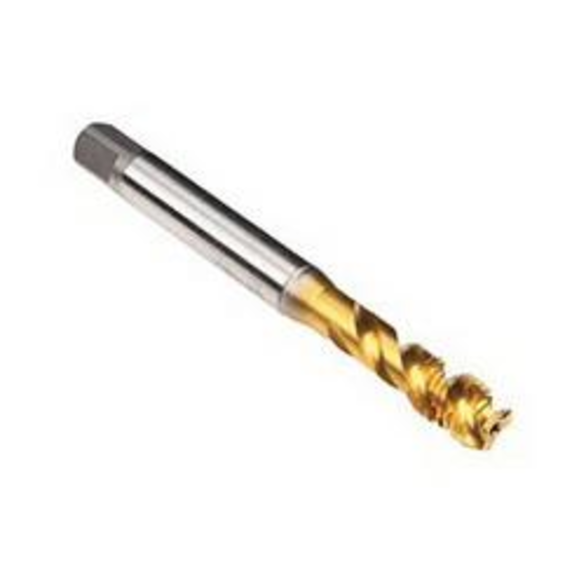

Emuge B0973700.0060 Enorm 1-Z/E-IKZ B0973700 Form E Reinforced Shank Spiral Flute Tap, Right Hand Cutting, M6x1 Thread, Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiN Coated, HSS-E
EMUGE B0973700.0060
$102.67
/ EA
Out of Stock
- Coolant Through: Yes
- Material: HSS-E
- Finish/Coating: TiN Coated
- Number of Flutes: 3
- Flute Direction: Right Hand
- Class of Fit: 6H
- Chamfer Type: Bottoming
- Cutting Direction: Right Hand
- Overall Length - Metric: 80 mm
- Series: Enorm 1-Z/E-IKZ B0973700
- Shank Length - Metric: 50 mm
- Thread Length - Metric: 17 mm
- Thread Standard: Coarse
- Shank Diameter - Metric: 6 mm
- The Enorm Z/E design is typically for blind hole threads in long chipping materials
- The fast spiral flute (45 deg) provides good chip removal from blind holes
- IKZ - axial coolant hole design
- Z designates a tool design for CNC controlled machines with synchronous feed control
- DIN/DIN standard dimensions on overall length and shank size
Standards/Approvals: DIN/DIN Standard|DIN 13|DIN ISO 965-1|ASME B1.13M|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
Emuge Spiral Flute Tap | Form E Reinforced Shank | Series: Enorm 1-Z/E-IKZ B0973700 | Measurement System: Metric | Coarse | M6x1 | Bottoming Chamfer | 3 Flutes | HSS-E | TiN Coated | Class of Fit: 6H | Right Hand Cutting | 17 mm Thread Length | 80 mm Overall Length | 6 mm Shank Dia | 50 mm Shank Length | Right Hand Flute Direction
