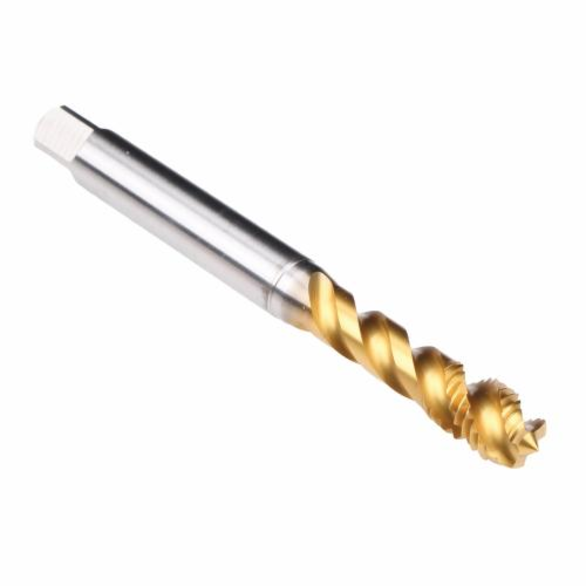

Emuge B3600F01.0080 Enorm 1-Z-SPEED X-PM B3600F01 Form C Fast Reinforced Shank Spiral Flute Tap, Right Hand Cutting, M8x1.25 Thread, 2-3 Modified Bottoming Plug Chamfer, Right Hand Flute Direction, 3 Flutes, TiN 60 Coated, HSS-E-PM
EMUGE B3600F01.0080
$99.74
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: M8x1.25
- Material: HSS-E-PM
- Finish/Coating: TiN 60 Coated
- Number of Flutes: 3
- Flute Direction: Right Hand
- Class of Fit: 6HX
- Chamfer Type: 2-3 Modified Bottoming Plug
- Cutting Direction: Right Hand
- Overall Length - Metric: 90 mm
- Series: Enorm 1-Z-SPEED X-PM B3600F01
- Thread Length - Metric: 14 mm
- Thread Standard: MC
- Shank Diameter - Metric: 8 mm
- Taps with the SPEED designation are designed to run faster than conventional taps, Z geometry is well suited to long chipping materials including stainless and alloyed steel
- TiN coating provides additional wear-resistance and reduces cold welding
- 45 deg spiral flute design
- DIN/DIN standard dimensions for overall length and shank size
- Replacement part for old tool B3503700.0080
Standards/Approvals: DIN 13|ISO Certified
For blind hole applications to pull the chips out of the hole
Emuge Spiral Flute Tap | Form C Fast Reinforced Shank | Series: Enorm 1-Z-SPEED X-PM B3600F01 | Measurement System: Metric | MC | M8x1.25 | 2-3 Modified Bottoming Plug Chamfer | 3 Flutes | HSS-E-PM | TiN 60 Coated | Class of Fit: 6HX | Right Hand Cutting | 14 mm Thread Length | 90 mm Overall Length | 8 mm Shank Dia | Right Hand Flute Direction | Steel Material Application
