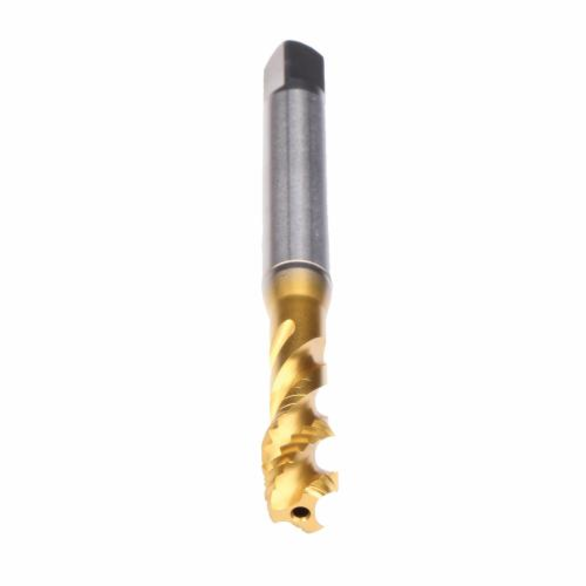

Emuge B3650F01.0050 Enorm 1-Z-SPEED X-IKZ-PM B3650F01 Form C Fast Reinforced Shank Spiral Flute Tap, Right Hand Cutting, M5x0.8 Thread, 2-3 Modified Bottoming Plug Chamfer, Right Hand Flute Direction, 3 Flutes, TiN 60 Coated, HSS-E-PM
EMUGE B3650F01.0050
$113.69
/ EA
Out of Stock
- Coolant Through: Yes
- Thread Size: M5x0.8
- Material: HSS-E-PM
- Finish/Coating: TiN 60 Coated
- Number of Flutes: 3
- Flute Direction: Right Hand
- Class of Fit: 6HX
- Chamfer Type: 2-3 Modified Bottoming Plug
- Cutting Direction: Right Hand
- Overall Length - Metric: 70 mm
- Series: Enorm 1-Z-SPEED X-IKZ-PM B3650F01
- Shank Diameter - Metric: 6 mm
- Thread Length - Metric: 8 mm
- Thread Standard: MC
- Taps with the SPEED designation are designed to run faster than conventional taps, Z geometry is well suited to long chipping materials including stainless and alloyed steel
- TiN coating provides additional wear-resistance and reduces cold welding
- TiN coated for additional tool life
- 45 deg spiral flute design
- IKZ - axial coolant hole design
- DIN/DIN standard dimensions for overall length and shank size
- Replacement part for old tool B3553700.0050
Standards/Approvals: DIN 13|ISO Certified
For blind hole applications to pull the chips out of the hole
Emuge Spiral Flute Tap | Form C Fast Reinforced Shank | Series: Enorm 1-Z-SPEED X-IKZ-PM B3650F01 | Measurement System: Metric | MC | M5x0.8 | 2-3 Modified Bottoming Plug Chamfer | 3 Flutes | HSS-E-PM | TiN 60 Coated | Class of Fit: 6HX | Right Hand Cutting | 8 mm Thread Length | 70 mm Overall Length | 6 mm Shank Dia | Right Hand Flute Direction | Steel Material Application
