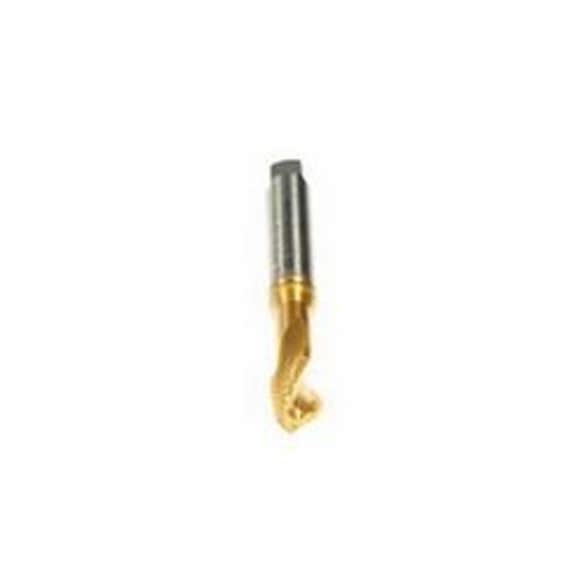

Emuge BU263701.5045 Rekord 1D-SPEED BU263701 Form C Slow Reinforced Shank Spiral Flute Tap, Right Hand Cutting, 3/8-24 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiN Coated, HSS-E
EMUGE BU263701.5045
$96.77
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: 3/8-24
- Material: HSS-E
- Finish/Coating: TiN Coated
- Number of Flutes: 3
- Flute Direction: Right Hand
- Class of Fit: 2BX
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Overall Length: 3.937 in
- Series: Rekord 1D-SPEED BU263701
- Shank Diameter: 0.381 in
- Shank Length: 2.402 in
- Thread Length: 0.866 in
- Thread Standard: UNF
- Speed taps are able to operate at higher cutting speeds than conventional designs
- Rekord D style taps have a slow spiral construction
- Solid or IKZ - axial coolant hole construction
- TiN coated for additional tool life
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For blind hole applications
Emuge Spiral Flute Tap | Form C Slow Reinforced Shank | Series: Rekord 1D-SPEED BU263701 | Measurement System: Imperial | UNF | 3/8-24 | Modified Bottoming Chamfer | 3 Flutes | HSS-E | TiN Coated | Class of Fit: 2BX | Right Hand Cutting | 0.866 in Thread Length | 3.937 in Overall Length | 0.381 in Shank Dia | 2.402 in Shank Length | Right Hand Flute Direction
