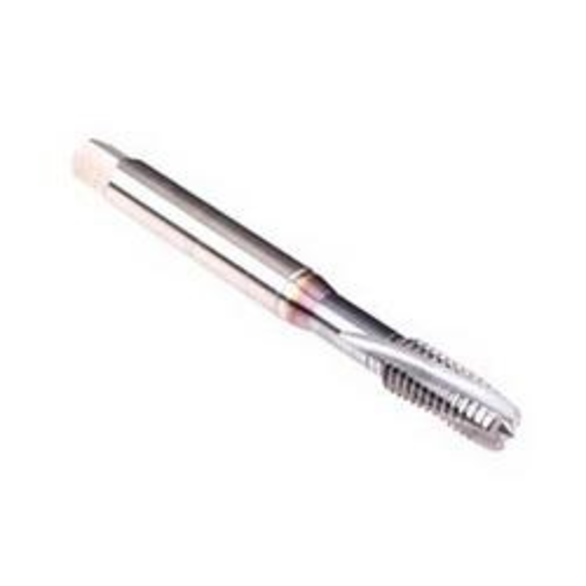

Emuge BU309600.5656 Rekord C-TI SELF-LOCK™ BU309600 Form D Reinforced Shank Spiral Flute Tap, Left Hand Cutting, 4-40 Thread, Plug Chamfer, Left Hand Flute Direction, 3 Flutes, TiCN Coated, HSS-E
EMUGE BU309600.5656
$105.34
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: 4-40
- Material: HSS-E
- Finish/Coating: TiCN Coated
- Number of Flutes: 3
- Flute Direction: Left Hand
- Class of Fit: BT
- Chamfer Type: Plug
- Overall Length: 2.205 in
- Series: Rekord C-TI SELF-LOCK™ BU309600
- Shank Diameter: 0.141 in
- Thread Length: 0.433 in
- Thread Standard: LK-UNC
- Rekord C-TI is a left hand spiral tap designed for titanium alloys and high tensile strength materials
- TiCN coated for wear resistance and additional tool life
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
Emuge Spiral Flute Tap | Form D Reinforced Shank | Series: Rekord C-TI SELF-LOCK BU309600 | Measurement System: Imperial | LK-UNC | 4-40 | Plug Chamfer | 3 Flutes | HSS-E | TiCN Coated | Class of Fit: BT | Left Hand Cutting | 0.433 in Thread Length | 2.205 in Overall Length | 0.141 in Shank Dia | Left Hand Flute Direction
