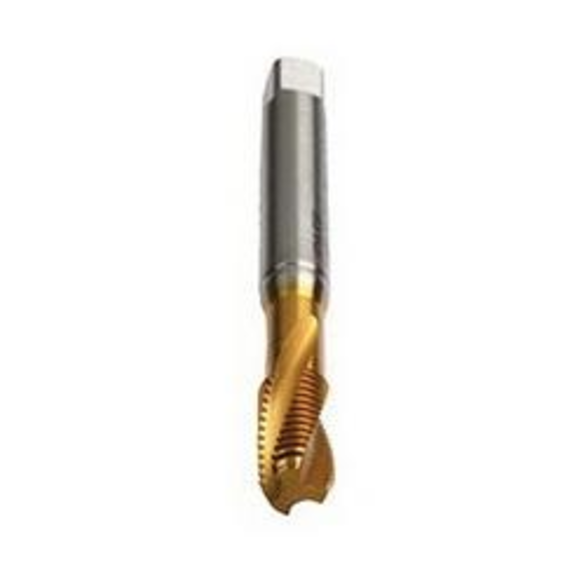

Emuge BU451400.5009 Rekord 1D-STEEL BU451400 Form C Reinforced Shank Spiral Flute Tap, Right Hand Cutting, 1/4-20 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiN Coated, HSS-E
EMUGE BU451400.5009
$64.35
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: 1/4-20
- Material: HSS-E
- Finish/Coating: TiN Coated
- Number of Flutes: 3
- Flute Direction: Right Hand
- Class of Fit: 2B
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Overall Length: 3.15 in
- Series: Rekord 1D-STEEL BU451400
- Shank Diameter: 0.255 in
- Shank Length: 1.969 in
- Thread Length: 0.669 in
- Thread Standard: UNC
- TiN coated for additional tool life
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For blind holes, especially automatic lathes and multi-spindle machines
Emuge Spiral Flute Tap | Form C Reinforced Shank | Series: Rekord 1D-STEEL BU451400 | Measurement System: Imperial | UNC | 1/4-20 | Modified Bottoming Chamfer | 3 Flutes | HSS-E | TiN Coated | Class of Fit: 2B | Right Hand Cutting | 0.669 in Thread Length | 3.15 in Overall Length | 0.255 in Shank Dia | 1.969 in Shank Length | Right Hand Flute Direction
